LIAN LI  |  رمز المنتج (SKU): 506515

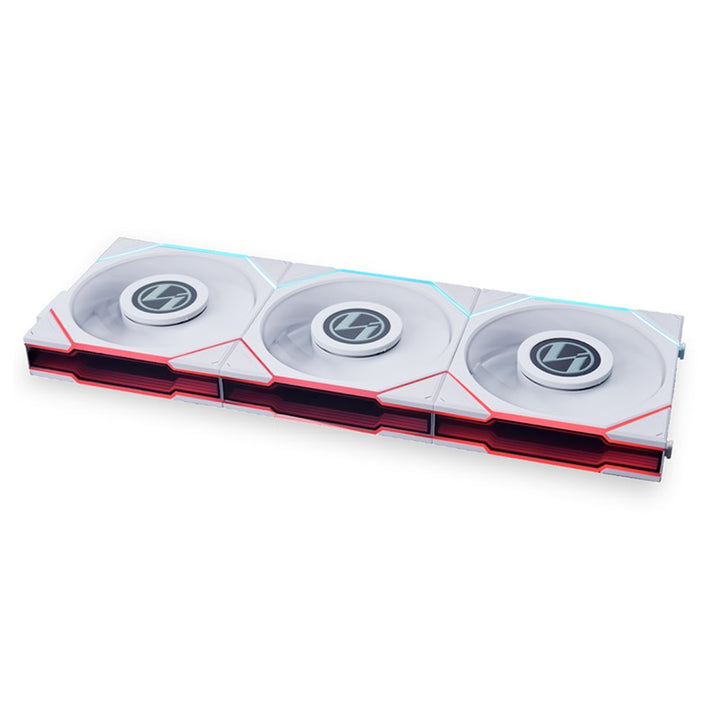

LIAN LI UNI FAN TL LCD 120mm ARGB 3-Pack with 1.6" LCD Display - White

43.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Express Delivery (within 3 hours): 2.9 KD

    Available from 11:00 am to 10:00 pm (Friday starting at 2:00 pm)
  • Digital Cards: Delivered for free directly via SMS

Deliveries after 7 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

طرق الدفع

  • Apple Pay
  • Mastercard
  • Visa

تتم معالجة معلومات الدفع الخاصة بك بشكل آمن. نحن لا نقوم بتخزين تفاصيل بطاقة الائتمان ولا يمكننا الوصول إلى معلومات بطاقتك الائتمانية.

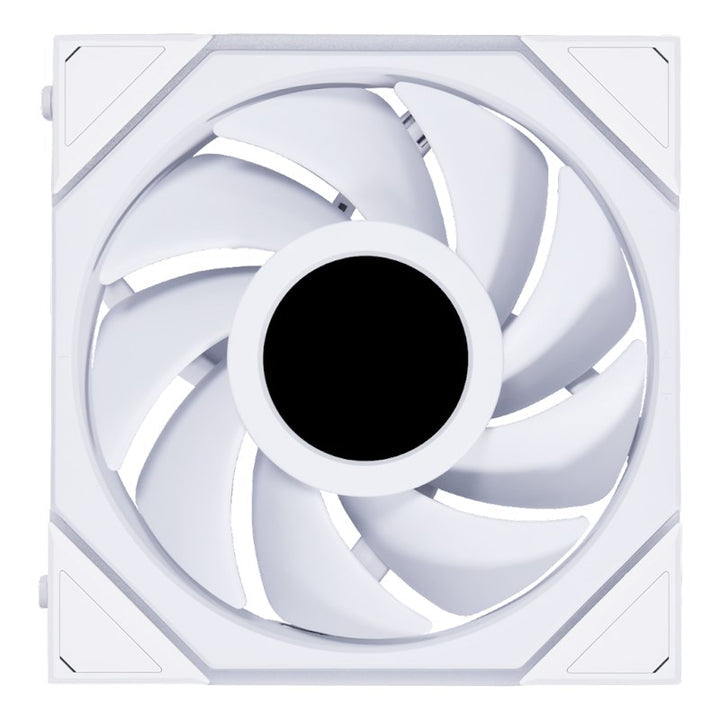

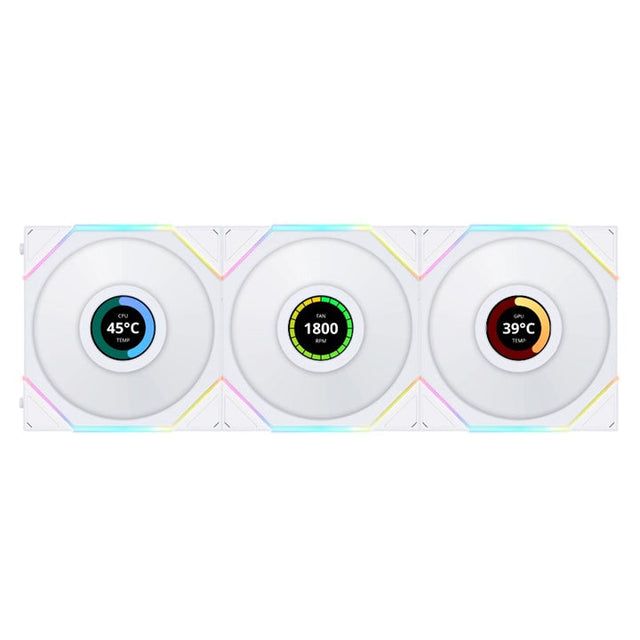

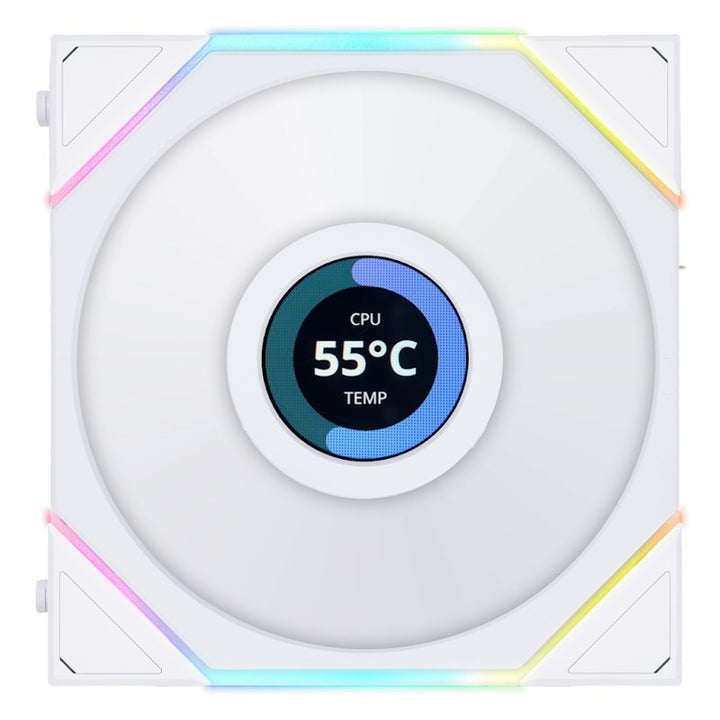

The UNI FAN TL LCD is a 120mm ARGB fan designed for performance, personalization, and system monitoring. Each fan includes a built-in 1.6" LCD screen to display live system data or custom visuals, powered and controlled through L-Connect 3 software.


Key Features

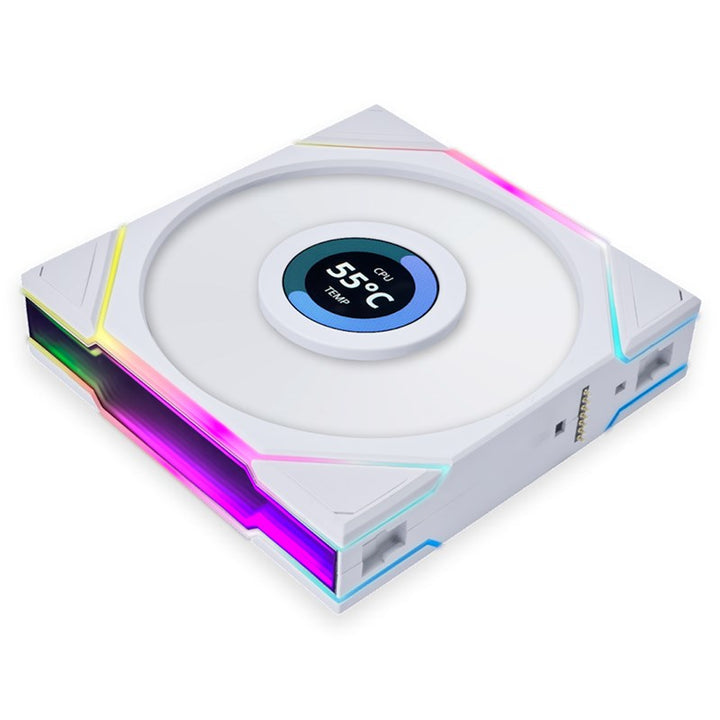

  • 1.6" LCD screen (400×400 resolution, 500 nits)
  • Full-color IPS display with SRGB-24-bit
  • Upload custom MP4 / GIF / PNG / JPG content

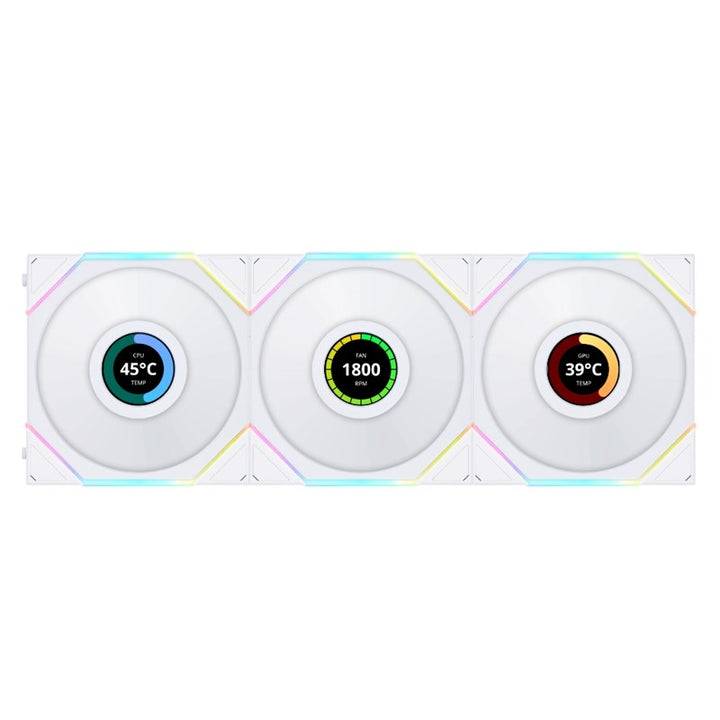

  • Displays live CPU/GPU temps, fan speed
  • Each port connects up to 3 fans (max 9 TL LCD fans per controller)

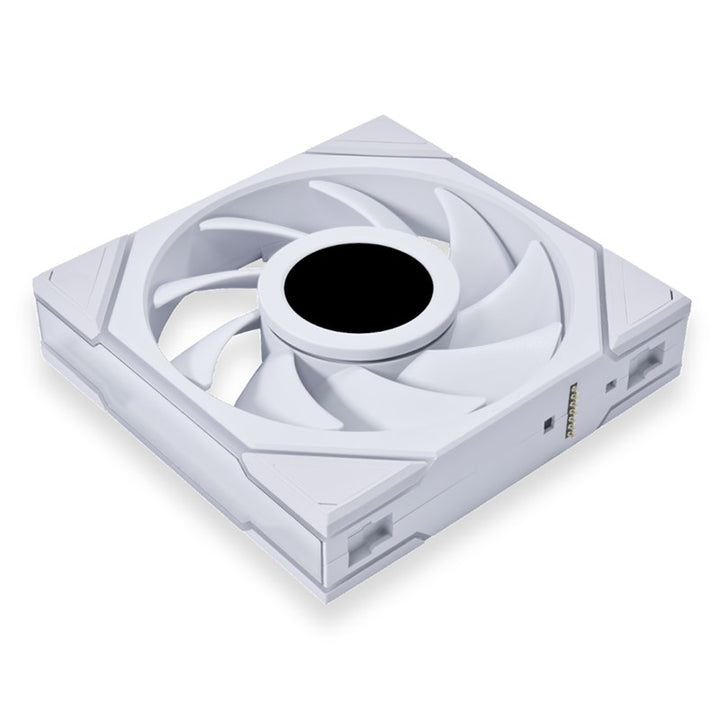

  • Slide-in daisy-chain setup with 1 cable per group
  • Removable interlocking key for compatibility
  • Compatible with TL and TL LCD on one controller
  • Optimized fan speed control per cluster
  • 26 ARGB LEDs per fan with side lighting
  • Enlarged infinity mirror on both sides
  • Anti-vibration rubber pads cover visible screws


Cooling Performance

  • Fan speed: 0, 350 – 1900 RPM
  • Max airflow: 62 CFM
  • Max air pressure: 2.9 mmH₂O
  • Max noise: 27 dB(A)
  • Bearing: Fluid Dynamic Bearing (FDB)
  • Power: 7.08W
  • Voltage: 12V (fan), 5V (LED)
  • Dimensions: 124 x 120 x 28 mm

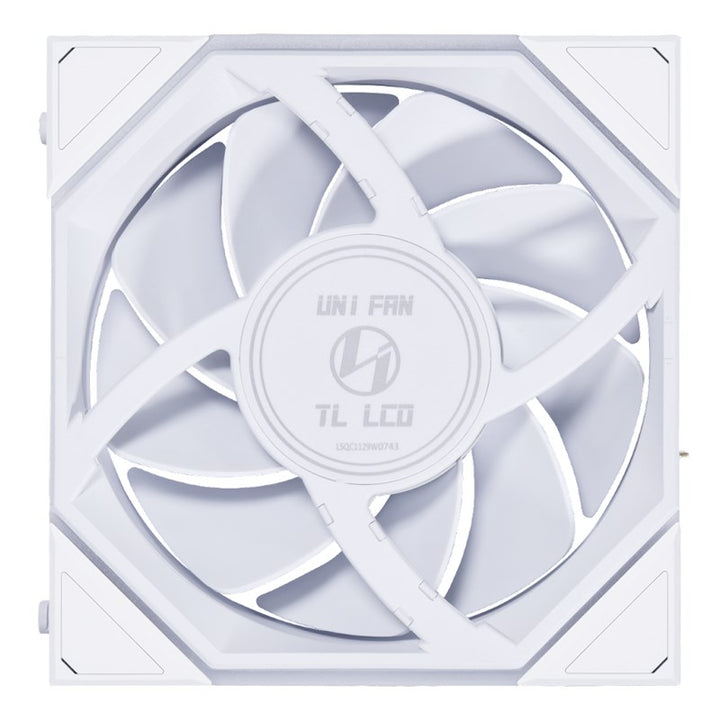

Build and Materials

  • Materials: PA66 / PBT
  • Thicker 28mm frame for better static pressure
  • Magnetic rubber ring and metal bearing shell
  • Brazz nut prevents oil leaks
  • Copper shaft for fan blade stability
  • Stator for smooth rotation

Software Control

  • Full control with L-Connect 3
  • Individual lighting effect per fan side
  • Custom fan speed profiles
  • LCD screen settings with live monitoring
  • Max 12 TL LCD fans per software instance
  • Option to expand with additional controller
  • Note: Port 1 on the controller does not support TL LCD

Included in the Box

  • 3 × UNI FAN TL LCD 120mm – Black

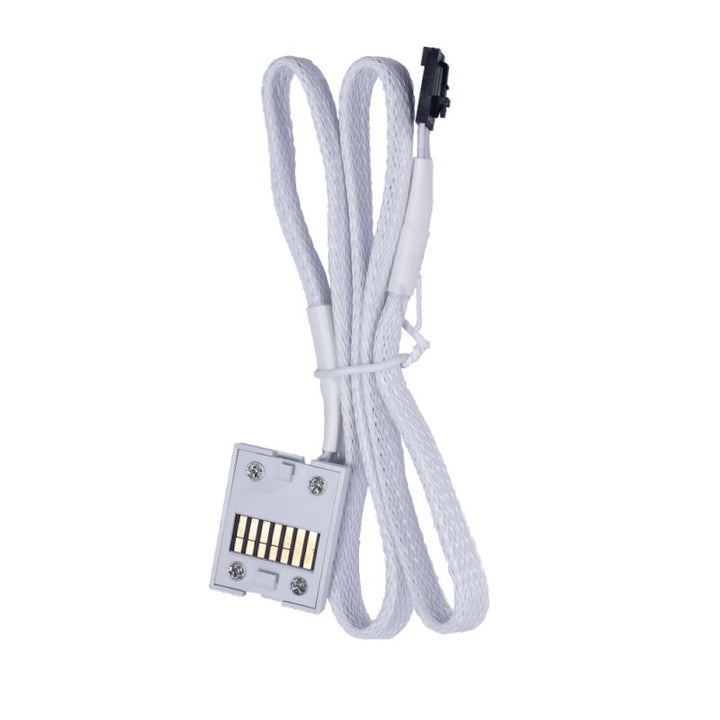

  • 1 × UNI FAN controller cable (P-7P)
  • Mounting accessories
  • User manual
