MSI  |  SKU: 506491

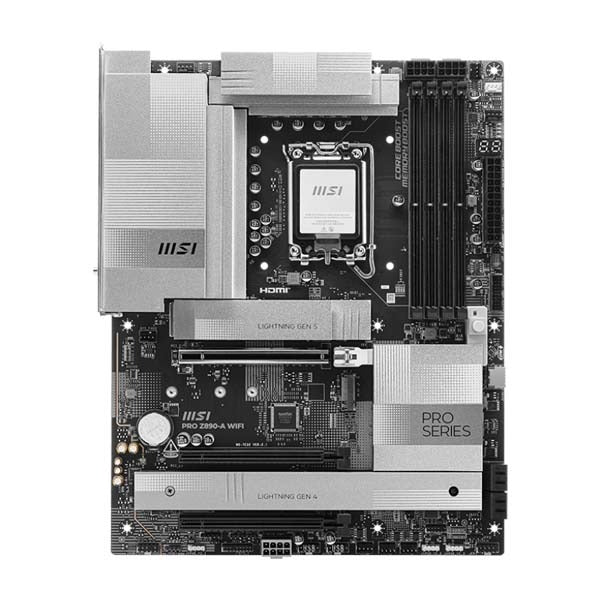

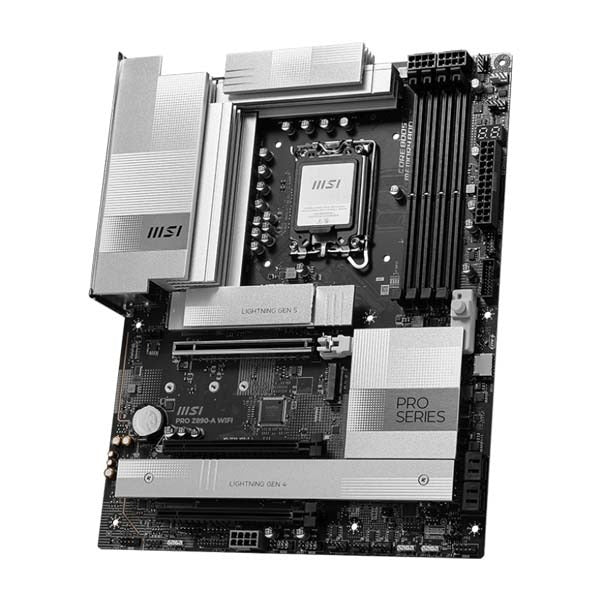

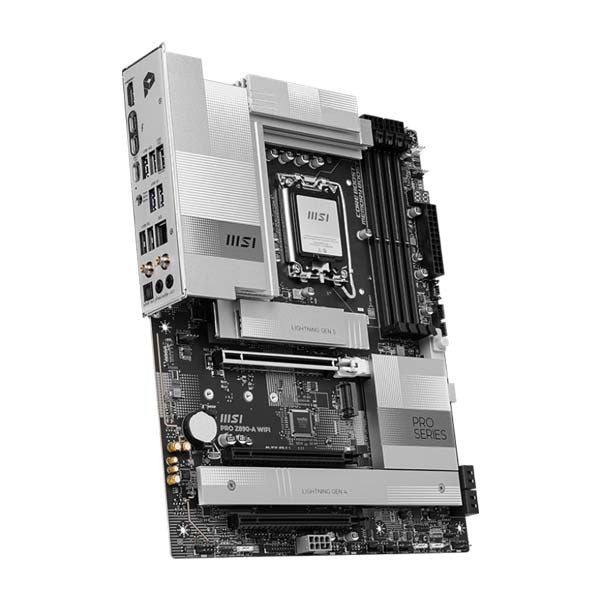

MSI PRO Z890-A WIFI DDR5 ATX Motherboard - Black

99.000 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery is free, Same Day Delivery costs 1 KD
  • Express Delivery within 3 hours is available for 2.9 KD (from 11:00 am to 10:00 pm, with Friday starting at 2:00 pm).
  • Digital Cards are delivered for free directly to your email.
  • Deliveries after 6 pm will be scheduled for next-day delivery. Please note, our
  • Shipping policies and prices are subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Benefit
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ATX Intel Z890 motherboard for LGA1851. Supports Intel Core Ultra (Series 2) desktop CPUs. Dual-channel DDR5 with four DIMMs up to 256 GB. One PCIe 5.0 x16 slot for graphics and four M.2 slots including one PCIe 5.0 x4. Built-in Wi-Fi 7 and 5 GbE LAN. Dual Thunderbolt 4 Type-C plus HDMI for display. Black color.

Key Features

  • LGA1851 support for Intel Core Ultra (Series 2)
  • DDR5 memory, 4 DIMMs, up to 256 GB
  • Graphics slot: PCIe 5.0 x16 (steel-reinforced)
  • Storage: 4 × M.2 with 1 × Gen5 x4 and 3 × Gen4 x4, plus 4 × SATA 6 Gb/s
  • Networking: Wi-Fi 7 + Bluetooth 5.4 and 5 GbE LAN
  • Display: 2 × Thunderbolt 4 Type-C with DP 2.1 over Type-C, 1 × HDMI 2.1
  • Audio: Realtek ALC1220P, 7.1-channel HD, optical S/PDIF out
  • Flash BIOS Button and pre-installed I/O shield
  • EZ features: EZ PCIe Release, EZ M.2 Clip II, M.2 Shield Frozr, EZ Debug LEDs
  • Extended heatsinks and VRM thermal pads

Specifications

  • Chipset: Intel Z890
  • CPU Socket / Support: LGA1851; Intel Core Ultra (Series 2)
  • Form Factor: ATX, 244 × 305 mm
  • Memory: 4 × DDR5 UDIMM; dual-channel; non-ECC, unbuffered; up to 256 GB
  • PCIe Slots:
    • PCI_E1: PCIe 5.0 x16 (from CPU)

    • PCI_E2: PCIe 4.0 x4 (from chipset)

    • PCI_E3: PCIe 4.0 x4 (from chipset)

  • M.2 Slots (Key M):

    • M2_1: PCIe 5.0 x4; 2260/2280 (from CPU)

    • M2_2: PCIe 4.0 x4; 2260/2280/22110 (from CPU)

    • M2_3: PCIe 4.0 x4; 2242/2260/2280 (from chipset)

    • M2_4: PCIe 4.0 x4 or SATA 6 Gb/s; 2242/2260/2280 (from chipset)

  • SATA: 4 × SATA 6 Gb/s
  • RAID: RAID 0/1/5/10 on SATA and NVMe
  • Networking: Realtek 8126 5 GbE LAN; Wi-Fi 7; Bluetooth 5.4

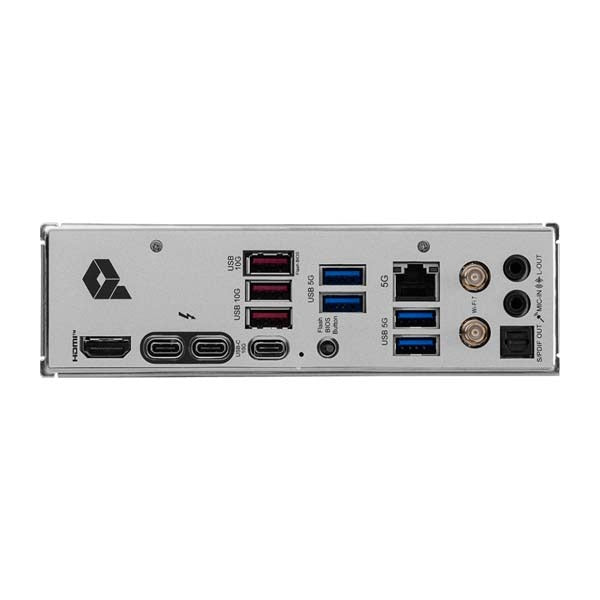

  • Rear I/O:
    • 2 × Thunderbolt 4 Type-C (from CPU, DP 2.1 over Type-C)

    • 1 × HDMI 2.1

    • 1 × USB-C 10 Gb/s (Gen2)

    • 3 × USB-A 10 Gb/s (Gen2)

    • 4 × USB-A 5 Gb/s (Gen1)

    • 1 × RJ-45 5 GbE

    • 2 × Wi-Fi antenna connectors

    • 2 × audio jacks + 1 × optical S/PDIF

    • Flash BIOS Button

  • Internal USB: Front USB-C 20 Gb/s with 27 W PD; 1 × USB 5 Gb/s header (adds 2 ports); 2 × USB 2.0 headers (add 4 ports)
  • Audio Codec: Realtek ALC1220P, 7.1-channel HD, S/PDIF out
  • Power Connectors: 24-pin ATX; 2 × 8-pin CPU; 1 × 8-pin PCIe auxiliary
  • Fan/LED Headers: 1 × CPU, 1 × pump/combo, 6 × system; 1 × 4-pin RGB; 3 × 3-pin ARGB Gen2
  • Monitoring/Debug: EZ Debug LEDs; EZ Digi-Debug LED
