ATX Intel Z890 Motherboard for LGA1851 is built for Intel Core Ultra Series 2 desktop processors and high-performance PC builds.

It supports four DDR5 DIMM slots with up to 256GB memory capacity, PCIe 5.0 graphics support, and four M.2 slots for fast NVMe storage.

With Wi-Fi 7, Bluetooth 5.4, Intel Killer 5GbE LAN, dual Thunderbolt 4 Type-C, and HDMI 2.1 FRL, it gives you strong connectivity for gaming, creation, and workstation setups.


Technical Specifications

General Specifications
Chipset Intel Z890
CPU Socket LGA1851
CPU Support Intel Core Ultra Series 2 Desktop Processors
Form Factor ATX
Dimensions 244 × 305 mm
Color Black
Memory Support
Memory Slots 4 × DDR5 UDIMM
Memory Architecture Dual-Channel
Maximum Memory Up to 256GB
XMP Support Intel XMP 3.0
CUDIMM Support Yes
Expansion Slots
PCIe Slots 3 × PCIe x16 Total
PCI_E1 Up to PCIe 5.0 x16 from CPU
PCI_E2 Up to PCIe 4.0 x4 from Chipset
PCI_E3 Up to PCIe 4.0 x4 from Chipset
Storage Support
M.2 Slots 4 × M.2 Key M
M2_1 PCIe 5.0 x4, 2260 / 2280, from CPU
M2_2 PCIe 4.0 x4, 2260 / 2280 / 22110, from CPU
M2_3 PCIe 4.0 x4, 2242 / 2260 / 2280, from Chipset
M2_4 PCIe 4.0 x4 or SATA, 2242 / 2260 / 2280, from Chipset
SATA 4 × SATA 6Gb/s
RAID Support RAID 0, 1, 5, 10 on SATA and NVMe
Graphics and Display Output
HDMI HDMI 2.1 FRL up to 4K120 or 8K60
Thunderbolt Display 2 × Thunderbolt 4 Type-C with DisplayPort 2.1 over USB-C
Video Output Requirement Requires CPU with Integrated Graphics

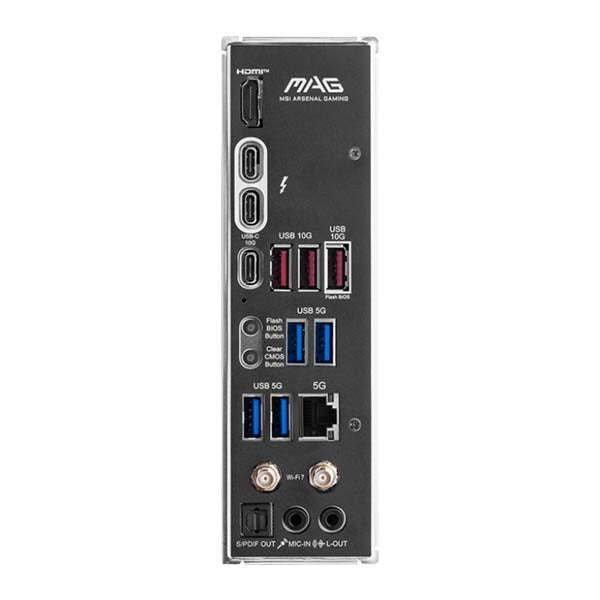

Rear I/O
Thunderbolt 4 2 × USB-C
USB-A 10Gbps 3 Ports
USB-C 10Gbps 1 Port
USB-A 5Gbps 4 Ports
LAN 1 × 5GbE RJ-45
Wi-Fi Antenna 2 Connectors
Audio 2 Audio Jacks + Optical S/PDIF
Buttons Flash BIOS Button + Clear CMOS Button
Connectivity and Audio
LAN Controller Intel Killer E5000 5GbE LAN
Wi-Fi Wi-Fi 7
Bluetooth Bluetooth 5.4
Audio Codec Realtek ALC1220P
Audio Channels 7.1-Channel HD Audio
Digital Audio Output Optical S/PDIF
Internal Headers and Power
Front USB-C 20Gbps with 27W Power Delivery
USB 5Gbps Header 1 Header Adds 2 Ports
USB 2.0 Headers 2 Headers Add 4 Ports
Main Power 24-Pin ATX
CPU Power 2 × 8-Pin CPU
Auxiliary Power 1 × 8-Pin PCIe
Fan Headers 1 × CPU, 1 × Pump/Combo, 6 × System
RGB Headers 1 × 4-Pin RGB, 3 × 3-Pin ARGB Gen2
Debug EZ Debug LEDs + EZ Digi-Debug LED

Key Features

  • LGA1851 support for Intel Core Ultra Series 2 processors
  • DDR5 dual-channel memory support up to 256GB
  • PCIe 5.0 x16 slot for graphics cards
  • 4 × M.2 slots including 1 × PCIe 5.0 x4
  • Wi-Fi 7 and Bluetooth 5.4 support
  • Intel Killer E5000 5GbE LAN
  • 2 × Thunderbolt 4 Type-C with DisplayPort 2.1
  • HDMI 2.1 FRL video output
  • Audio Boost with Realtek ALC1220P and Optical S/PDIF
  • Front USB-C 20Gbps with 27W Power Delivery
  • Flash BIOS Button and Clear CMOS Button
  • Pre-installed I/O shield
  • EZ M.2 Shield Frozr II and EZ M.2 Clip II
  • EZ PCIe Release for easier GPU removal
  • Extended heatsinks with server-grade PCB and 2 oz copper


User Benefits

  • Build a modern Intel Core Ultra Series 2 gaming or creator PC
  • Install high-speed DDR5 memory with large capacity support
  • Run next-generation GPUs through PCIe 5.0 bandwidth
  • Add multiple NVMe SSDs for fast storage and large game libraries
  • Use faster wireless networking with Wi-Fi 7
  • Connect high-speed external devices through Thunderbolt 4
  • Get stable wired networking with 5GbE LAN
  • Upgrade and troubleshoot more easily with EZ features and debug LEDs


Included Items

  • Intel Z890 ATX Motherboard
  • Pre-installed I/O Shield
  • Wi-Fi Antenna
  • SATA Cable
  • M.2 Mounting Accessories
  • User Documentation
