MSI  |  SKU: 506489

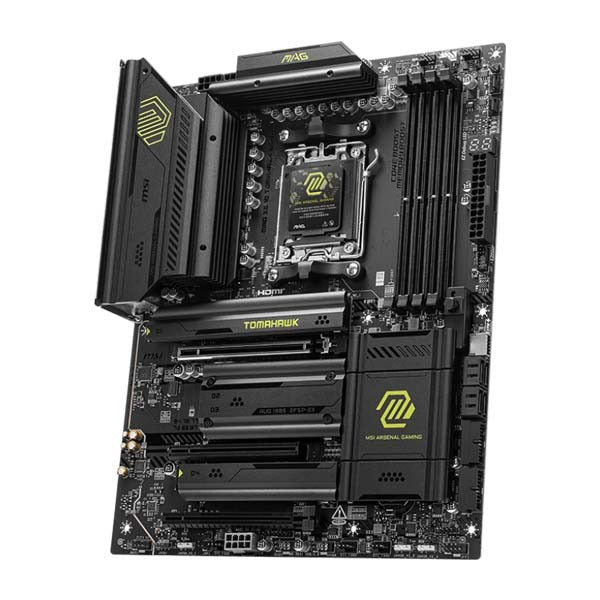

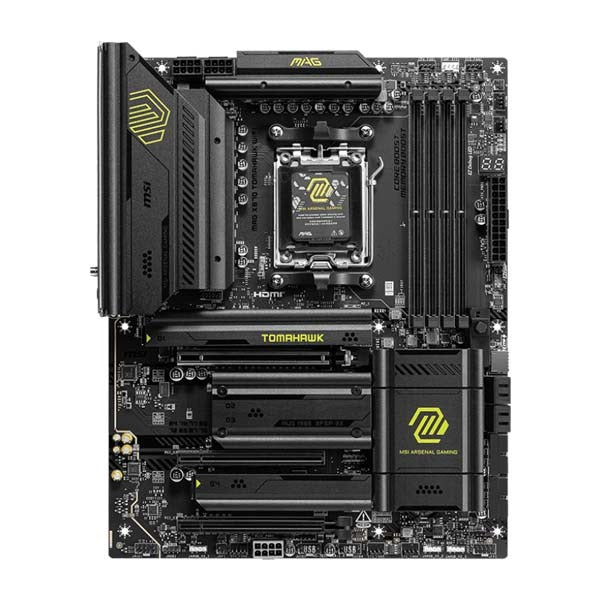

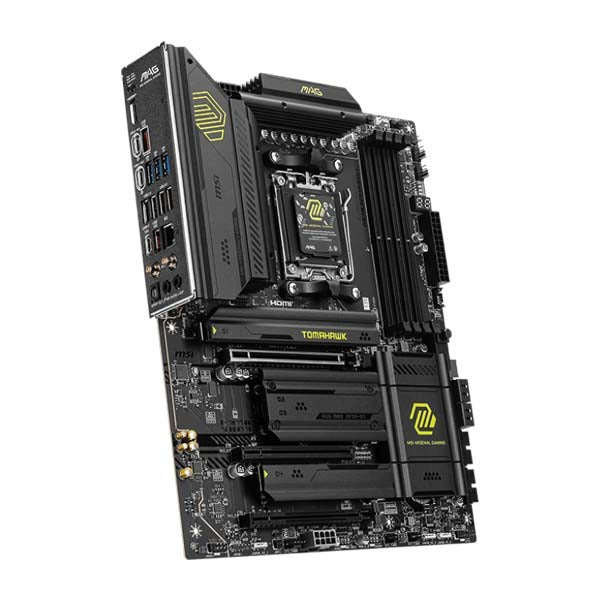

MSI MAG X870 TOMAHAWK WIFI DDR5 AMD ATX Motherboard - Black

122.000 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery is free, Same Day Delivery costs 1 KD
  • Express Delivery within 3 hours is available for 2.9 KD (from 11:00 am to 10:00 pm, with Friday starting at 2:00 pm).
  • Digital Cards are delivered for free directly to your email.
  • Deliveries after 6 pm will be scheduled for next-day delivery. Please note, our
  • Shipping policies and prices are subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Benefit
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ATX AMD X870 motherboard for AM5. Supports Ryzen 9000, 8000, and 7000 Series desktop CPUs. Four-DIMM DDR5 up to 256 GB. One PCIe 5.0 x16 graphics slot. Four M.2 sockets with two PCIe 5.0 x4 from the CPU. Wi-Fi 7 and Bluetooth 5.4. 5 GbE LAN. Dual USB4 40 Gbps Type-C with DisplayPort over USB-C plus HDMI 2.1 FRL. Black color.

Key Features

  • Socket AM5. Supports Ryzen 9000 / 8000 / 7000
  • DDR5 dual-channel, 4 DIMMs, up to 256 GB
  • PCIe 5.0 x16 graphics slot
  • Storage: 4 × M.2 (2 × PCIe 5.0 x4 from CPU, 2 × PCIe 4.0 from chipset)
  • Wi-Fi 7 with MU-MIMO and Bluetooth 5.4
  • Realtek 5 GbE LAN
  • Rear I/O: 2 × USB4 40 Gbps Type-C with DP 1.4 over USB-C, 1 × HDMI 2.1 FRL
  • Audio Boost with Realtek ALC4080 and optical S/PDIF out
  • Front USB-C 20 Gbps with 27 W PD
  • Flash BIOS Button and Clear CMOS. Pre-installed I/O shield
  • EZ features: EZ PCIe Release, EZ M.2 Clip II, M.2 Shield Frozr, EZ Debug LEDs
  • Extended heatsinks, server-grade PCB, 2 oz copper

Specifications

  • Chipset: AMD X870
  • CPU Socket / Support: AM5; Ryzen 9000 / 8000 / 7000 Series desktop processors
  • Form Factor: ATX, 244 × 305 mm
  • Memory: 4 × DDR5 UDIMM, dual-channel, non-ECC, unbuffered, up to 256 GB
  • PCIe Slots:
    • PCI_E1: up to PCIe 5.0 x16 (CPU)

    • PCI_E2: up to PCIe 3.0 x1 (chipset)

    • PCI_E3: up to PCIe 4.0 x4 (chipset)

  • M.2 (Key M): 4 slots

    • M2_1: PCIe 5.0 x4; 2280/22110 (CPU)

    • M2_2: PCIe 5.0 x4; 2260/2280 (CPU)

    • M2_3: PCIe 4.0 x2; 2260/2280 (chipset)

    • M2_4: PCIe 4.0 x4; 2260/2280 (chipset)

  • SATA: 4 × SATA 6 Gb/s
  • RAID: NVMe RAID 0/1/10
  • Graphics Outputs: 1 × HDMI 2.1 FRL up to 4K120/8K60; 2 × USB4 Type-C with DP 1.4 over USB-C (CPU with integrated graphics required for display output)

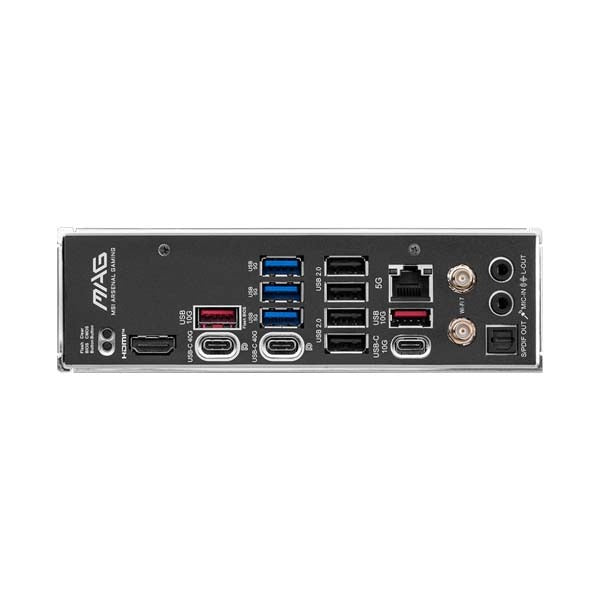

  • Rear I/O: 2 × USB4 40 Gbps Type-C, 1 × USB-C 10 Gbps, 2 × USB-A 10 Gbps, 3 × USB-A 5 Gbps, 4 × USB 2.0, 1 × 5 GbE RJ-45, 2 × Wi-Fi antenna, 2 × audio jacks, 1 × optical S/PDIF, Flash BIOS, Clear CMOS
  • Internal USB: Front USB-C 20 Gbps with 27 W PD; 2 × USB 5 Gbps headers (add 4 ports); 2 × USB 2.0 headers (add 4 ports)
  • Networking: Realtek 8126-CG 5 GbE; Wi-Fi 7; Bluetooth 5.4
  • Audio Codec: Realtek ALC4080, 7.1-channel HD, optical S/PDIF out
  • Power Connectors: 24-pin ATX; 2 × 8-pin CPU; 1 × 8-pin PCIe auxiliary
  • Fan/LED Headers: 1 × CPU; 1 × pump/combo; 6 × system; 1 × 4-pin RGB; 3 × 3-pin ARGB Gen2
  • Monitoring/Debug: EZ Debug LEDs; EZ Digi-Debug LED
