MSI B860M Gaming WiFi 7, AI, 5G LAN PCIe 5.0 Intel Motherboard

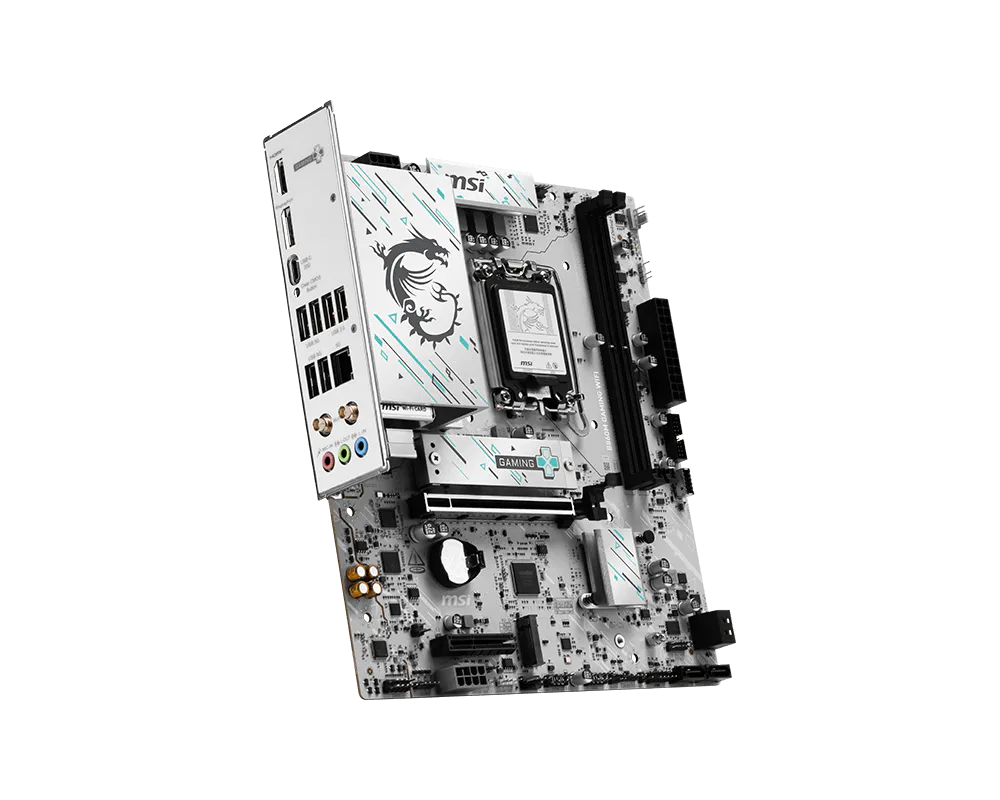

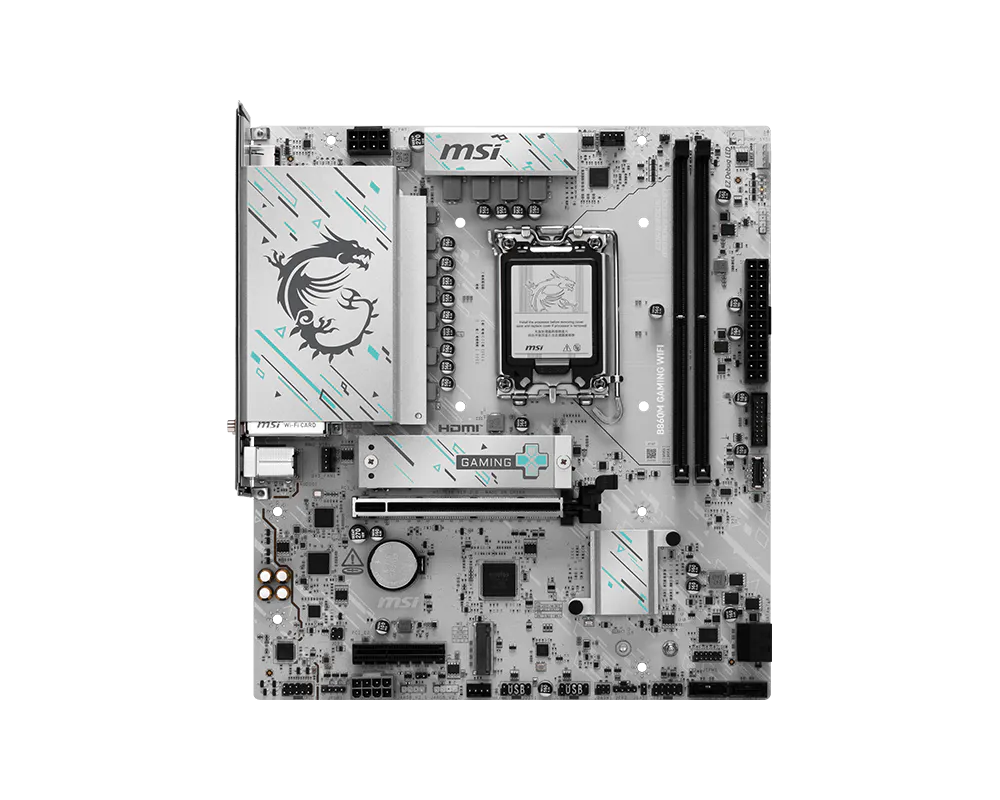

The MSI B860M GAMING WIFI is a high-performance Micro-ATX motherboard designed for gamers, PC builders, and enthusiasts seeking reliable performance, advanced connectivity, and support for modern Intel processors.

Powered by the Intel B860 chipset and LGA 1851 socket, it supports Intel Core Ultra Processors (Series 2). With dual-channel DDR5 memory support up to 9066+ MT/s (OC), PCIe 5.0 expansion, and high-speed M.2 storage, it provides a powerful foundation for gaming, productivity, and everyday computing.

Featuring an 8+1+1+1 P-PAK Power System, an extended heatsink design, 7W/mK thermal pads, and a durable 6-layer server-grade PCB, the motherboard is engineered to deliver stable power delivery and efficient thermal management during demanding workloads.

With integrated Wi-Fi 7, Realtek 5G LAN, Bluetooth 5.4, USB 20Gbps Type-C connectivity, and MSI AI-powered optimization technologies, it delivers fast networking, flexible connectivity, and intelligent system management.

MSI EZ DIY technologies, including EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, and EZ Debug LEDs, simplify installation, upgrades, and troubleshooting for a more convenient PC-building experience.


Technical Specifications

Product Specifications
Brand MSI
Model Number B860M GAMING WIFI
Series MSI Gaming Series
Product Type Intel Gaming Motherboard
Chipset Intel B860
CPU Socket Intel LGA 1851
Processor Compatibility Intel Core Ultra Processors (Series 2)
Form Factor Micro-ATX (mATX)
Motherboard Dimensions 220 × 243.84mm
Power Design 8+1+1+1 P-PAK Power System
CPU Power Connector 1 × 8-pin CPU Power Connector
Main Power Connector 1 × 24-pin ATX Power Connector
Supplemental PCIe Power 1 × 8-pin PCIe Power Connector
PCB Design 6-Layer Server-Grade PCB
Memory Type DDR5
Memory Slots 2 × DDR5 UDIMM Slots
Maximum Memory Capacity 128GB
Memory Speed Up to DDR5 9066+ MT/s (OC)
JEDEC Memory Speed 4800 - 6400 MT/s
Memory Architecture Dual-Channel
Memory Technology Intel XMP 3.0, Memory Boost, Memory Overclocking
Memory Compatibility Non-ECC Unbuffered DDR5, CUDIMM Support
Primary PCIe Slot 1 × PCIe 5.0 x16 Slot (CPU)
Additional Expansion Slot 1 × PCIe 4.0 x4 Slot (Chipset)
PCIe Reinforcement MSI Steel Armor
M.2 Storage Slots 2 × M.2 Slots
M.2 Slot 1 PCIe 5.0 x4, Supports 2242 / 2260 / 2280 SSDs
M.2 Slot 2 PCIe 4.0 x4, Supports 2260 / 2280 SSDs
SATA Ports 4 × SATA 6Gb/s
Storage RAID Support SATA RAID 0 / 1 / 5 / 10
Wired Networking Realtek RTL8126 5G LAN
LAN Speed Up to 5Gbps
Wireless Networking Wi-Fi 7 (802.11be)
Wi-Fi Frequency Bands 2.4GHz / 5GHz / 6GHz (Region Dependent)
Wi-Fi Channel Width Up to 160MHz
Maximum Wi-Fi Speed Up to 2.9Gbps
Wireless Technologies MU-MIMO, Multi-Link Operation (MLO), 4K QAM
Bluetooth Bluetooth 5.4
Audio Codec Realtek ALC897
Audio Channels 7.1-Channel High Definition Audio
Audio Technology MSI Audio Boost
HDMI Output 1 × HDMI 2.1, Up to 4K 60Hz
DisplayPort Output 1 × DisplayPort 1.4, Up to 4K 60Hz
Integrated Graphics Requirement Display Outputs Require a Processor with Integrated Graphics
Rear USB 20Gbps 1 × USB Type-C
Rear USB 5Gbps 4 × USB Type-A
Rear USB 2.0 2 × USB Type-A
Front USB 10Gbps Support 1 × USB Type-C Header
Front USB 5Gbps Support 2 × USB Type-A Ports via Internal Header
Front USB 2.0 Support 4 × USB 2.0 Ports via Internal Headers

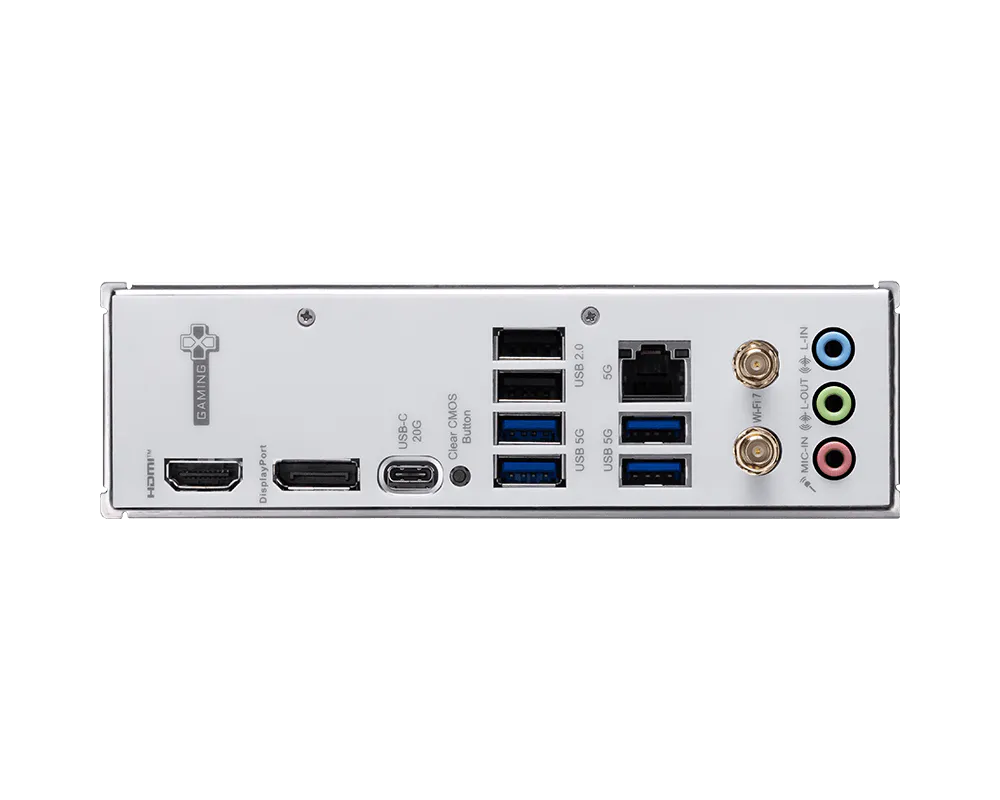

Rear I/O Ports 1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × USB 20Gbps Type-C, 4 × USB 5Gbps Type-A, 2 × USB 2.0, 1 × 5G LAN, Wi-Fi Antenna Connectors, 3 × Audio Jacks, Clear CMOS Button
Internal Fan Headers 1 × CPU Fan, 1 × Combo Pump/System Fan, 2 × System Fan
RGB Connectivity 3 × Addressable V2 RGB Headers, 1 × RGB LED Header
TPM Support TPM 2.0 Header
Debug Features 4 × EZ Debug LEDs, 1 × EZ Memory Detection LED
Cooling Design Extended Heatsink, Heavy-Plated VRM Heatsink, M.2 Shield Frozr
Thermal Pads 7W/mK MOSFET Thermal Pads with Additional Choke Thermal Pads
EZ DIY Features EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, Clear CMOS Button
AI Features MSI AI Engine, AI LAN Manager, Frozr AI Cooling, AI Boost
BIOS MSI Click BIOS X
Operating System Support Windows 11 64-bit

Key Features

  • Intel B860 chipset with LGA 1851 socket for Intel Core Ultra Processors (Series 2)
  • Advanced 8+1+1+1 P-PAK Power System for stable power delivery
  • 8-pin CPU power connector with MSI Core Boost technology
  • Two DDR5 memory slots supporting up to 128GB RAM
  • DDR5 memory speeds up to 9066+ MT/s (OC) with Intel XMP 3.0 support
  • PCIe 5.0 x16 expansion slot for modern high-performance graphics cards
  • MSI Steel Armor reinforcement for enhanced PCIe slot durability
  • Two M.2 SSD slots, including one PCIe 5.0 x4 slot
  • Integrated Wi-Fi 7 supporting high-speed wireless connectivity
  • Realtek 5G LAN for fast and stable wired networking
  • Bluetooth 5.4 for compatible wireless devices
  • USB 20Gbps Type-C connectivity for high-speed data transfers
  • HDMI 2.1 and DisplayPort 1.4 outputs for compatible processors with integrated graphics
  • Extended heatsink design for improved thermal performance
  • M.2 Shield Frozr for enhanced SSD cooling
  • 6-layer server-grade PCB for improved signal integrity and durability
  • 7W/mK MOSFET thermal pads for efficient heat dissipation
  • MSI Audio Boost with Realtek ALC897 7.1-channel HD audio
  • MSI Click BIOS X for convenient system configuration
  • MSI AI Engine and AI LAN Manager for intelligent system and network optimization
  • Frozr AI Cooling for automatic system fan adjustments
  • EZ PCIe Clip II for convenient graphics card removal
  • EZ M.2 Clip II for simplified SSD installation
  • EZ Antenna for convenient wireless antenna installation
  • Pre-installed I/O shield for easier motherboard installation
  • Clear CMOS Button for convenient BIOS reset
  • Integrated EZ Debug LEDs for easier hardware troubleshooting


User Benefits

  • Build a powerful Intel gaming PC with support for Core Ultra Processors (Series 2)
  • Enjoy stable performance during demanding gaming, multitasking, and productivity workloads
  • Benefit from efficient CPU power delivery with the advanced 8+1+1+1 power design
  • Experience faster memory performance with DDR5 technology and Intel XMP 3.0 support
  • Upgrade system memory up to 128GB for demanding applications and multitasking
  • Install high-performance graphics cards using the reinforced PCIe 5.0 x16 slot
  • Take advantage of PCIe 5.0 NVMe SSD storage for faster file transfers and application loading
  • Expand storage capacity with two M.2 slots and four SATA ports
  • Enjoy responsive online gaming and fast downloads with Realtek 5G LAN connectivity
  • Connect wirelessly with Wi-Fi 7 for improved network efficiency and reduced latency on compatible networks
  • Connect Bluetooth-compatible accessories, including headphones, keyboards, and controllers
  • Transfer large files quickly using USB Type-C connectivity with speeds up to 20Gbps
  • Maintain stable operating temperatures with extended heatsinks and dedicated M.2 cooling
  • Enjoy immersive gaming audio with MSI Audio Boost and 7.1-channel HD audio support
  • Simplify PC assembly and future upgrades with MSI EZ DIY installation technologies
  • Install and remove compatible M.2 SSDs more easily using EZ M.2 Clip II
  • Remove graphics cards conveniently using the EZ PCIe Clip II mechanism
  • Install the motherboard more easily thanks to the pre-installed I/O shield
  • Identify potential hardware issues quickly using integrated EZ Debug LEDs
  • Monitor memory installation issues using the EZ Memory Detection LED
  • Optimize gaming network traffic with MSI AI LAN Manager
  • Automatically adjust cooling performance with Frozr AI Cooling
  • Manage system settings and performance through MSI Center and Click BIOS X
  • Customize compatible RGB lighting devices using MSI Mystic Light
  • Build a reliable desktop system with durable construction and a 6-layer server-grade PCB

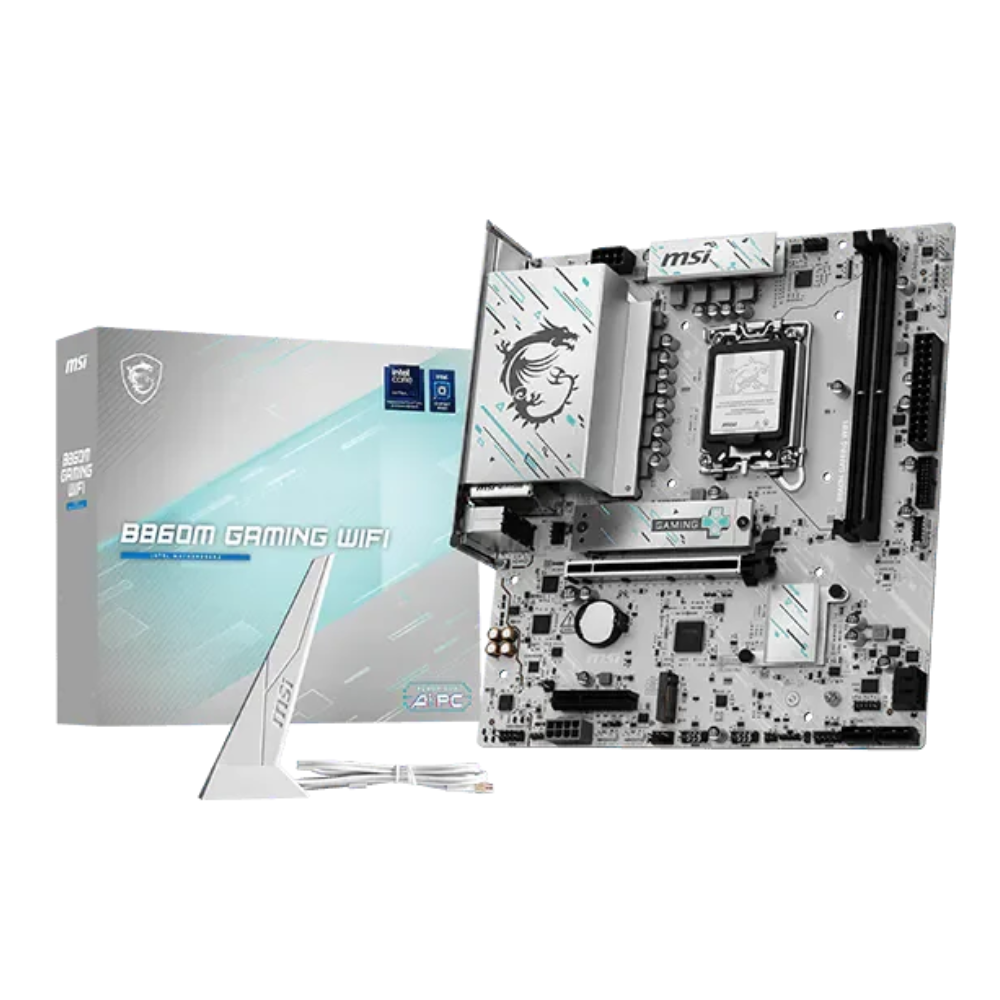

Included Items

  • MSI B860M GAMING WIFI Motherboard × 1
  • Quick Installation Guide × 1
  • European Union Regulatory Notice × 1
  • EZ Wi-Fi Antenna × 1
  • SATA Cable × 1
  • EZ M.2 Clip II × 1
  • EZ M.2 Clip II Remover × 1
  • Cable Sticker × 1
