MSI  |  SKU: 507102

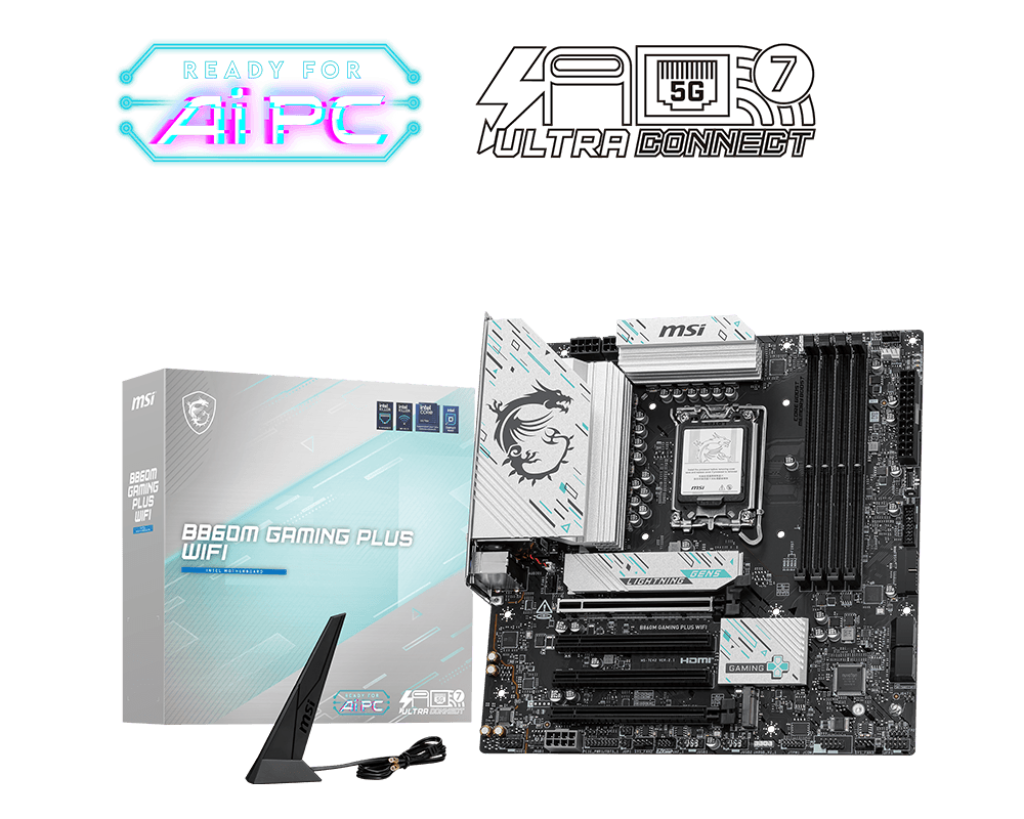

MSI B860M GAMING PLUS WIFI DDR5 Motherboard - Black

73.0 KD 79.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Orders Below 10 KD (Within 24 Hours): 1.5 KD
  • Express Delivery (90–180 min): 2.9 KD (Available before 08:00 PM)
  • Ultra Delivery (30–90 min): 3.9 KD
    (Available before 08:00 PM)
  • Ali Sabah Al Salim (Om Al Haiman), Sabah Al
    Ahmed, Al Metla'a Areas:
    5 KD
  • Digital Cards: Delivered for free
    directly via SMS

Available from 11:00 am to 08:00 pm (Friday starting at 2:00
pm). Deliveries after 8 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are
subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

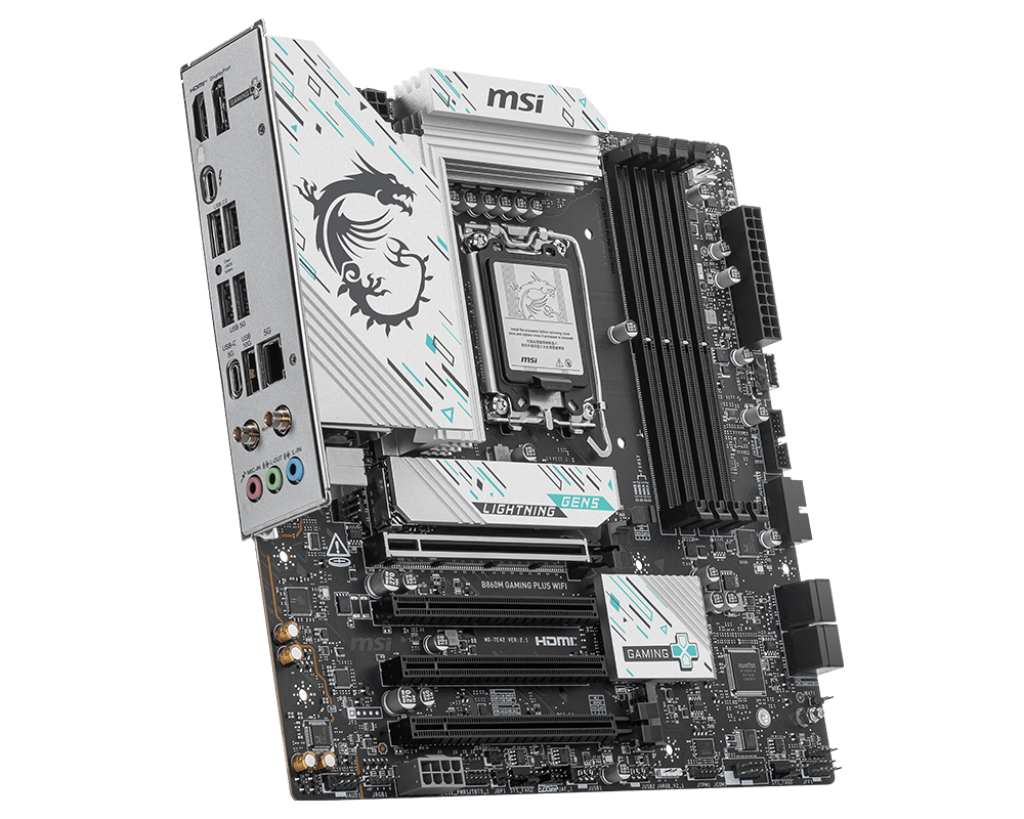

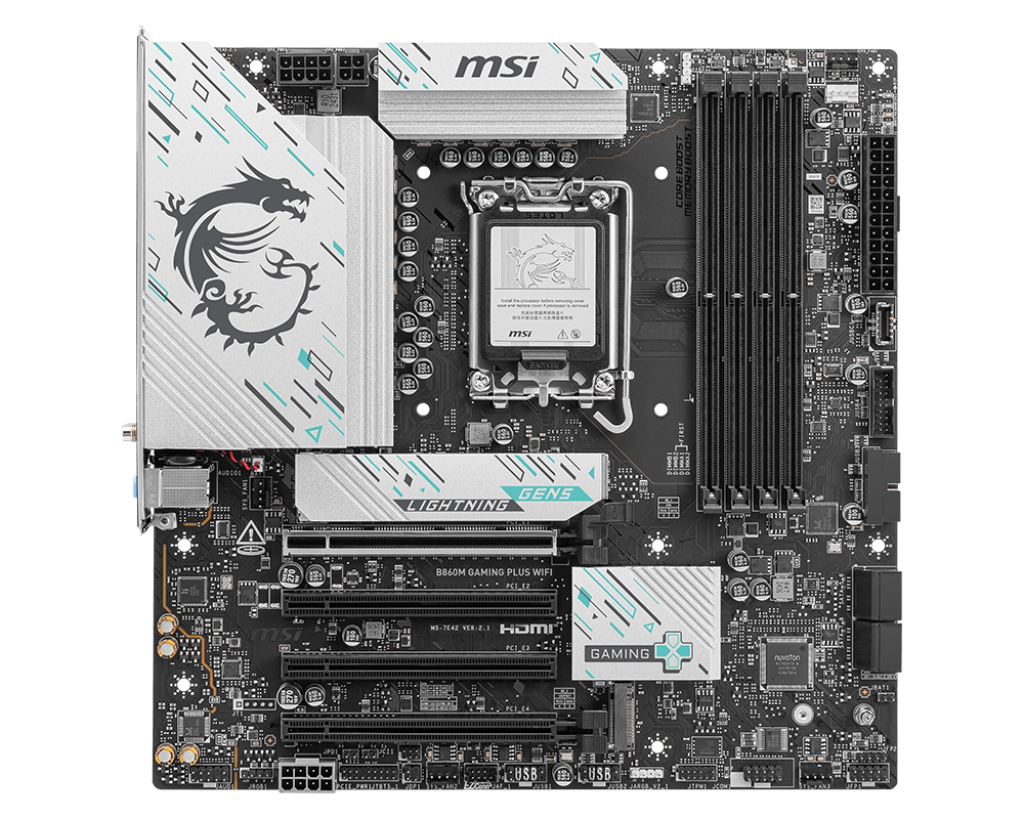

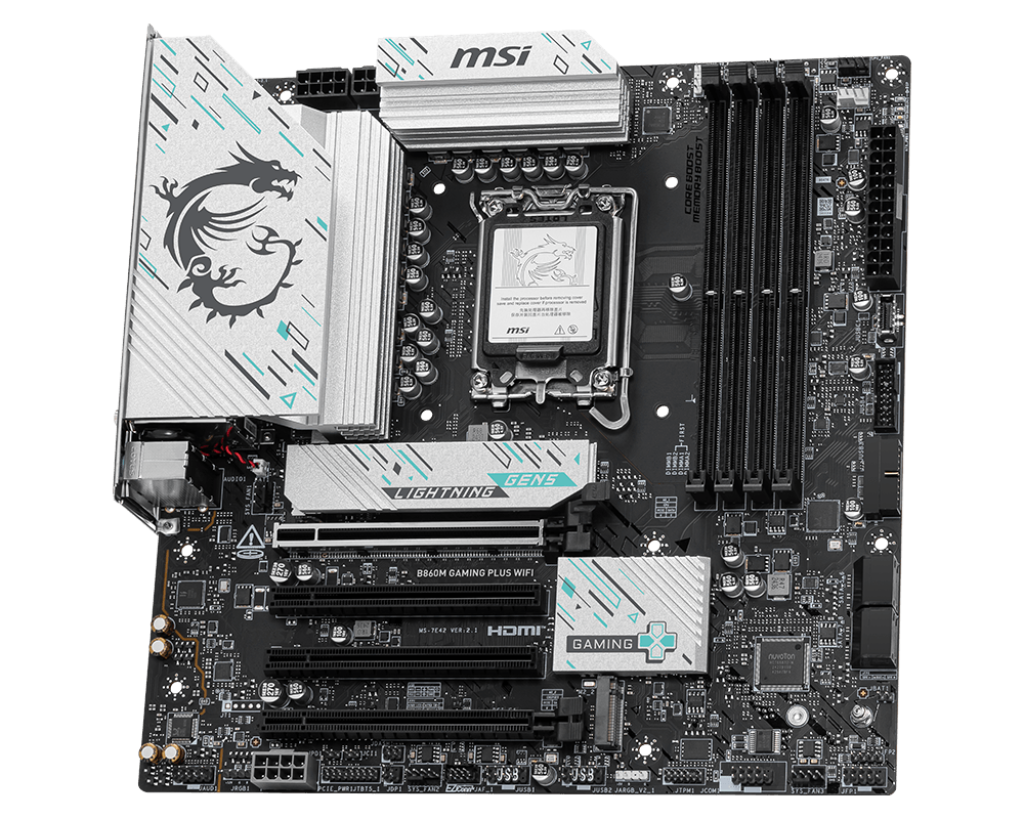

MSI B860 Micro-ATX Motherboard is a high-performance motherboard built with the Intel B860 chipset and LGA 1851 socket for Intel Core Ultra Series 2 processors.

Designed for gaming and creator systems, the motherboard delivers next-generation connectivity with PCIe 5.0 graphics support, DDR5 memory, Thunderbolt 4, Wi-Fi 7, and ultra-fast 5Gb LAN networking.

Its advanced cooling design, powerful VRM architecture, and wide I/O connectivity make it suitable for compact high-performance PC builds focused on gaming, streaming, multitasking, and productivity workloads.


Technical Specifications

Motherboard Specifications
Chipset Intel B860
CPU Support Intel Core Ultra Series 2
Socket LGA 1851
Form Factor Micro-ATX
Memory Slots 4 × DDR5 UDIMM
Maximum Memory Up to 256GB
Memory Speed DDR5 8600+ MT/s (OC)
PCIe x16 Slots 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16
PCIe x1 Slots 2 × PCIe 4.0 x1
M.2 Slots 3 × M.2
M.2 Support 1 × PCIe 5.0, 2 × PCIe 4.0
SATA Ports 4 × SATA 6G
Wireless Networking Killer BE1750x Wi-Fi 7
Bluetooth Bluetooth 5.4
LAN Killer E5000 5Gb Ethernet
Audio Realtek ALC897 7.1-Channel HD Audio
Thunderbolt Thunderbolt 4

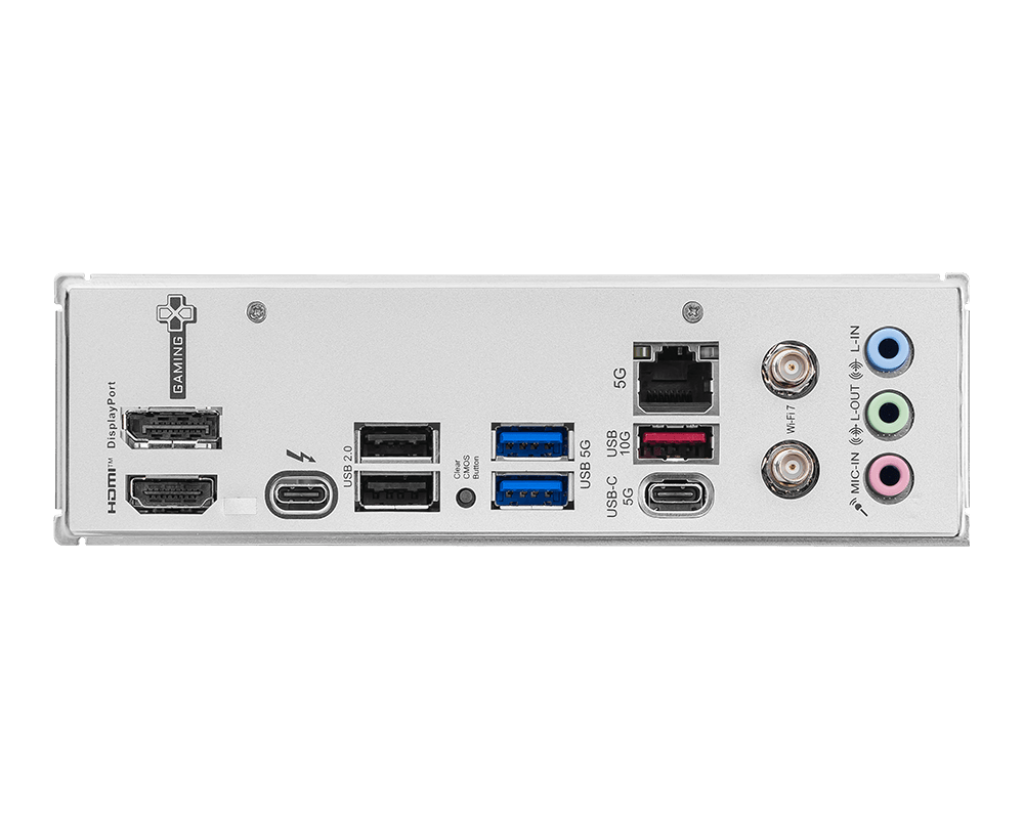

Rear USB USB Type-A and Type-C 5Gbps / 10Gbps
Front USB USB-C 10Gbps and USB 5Gbps Headers
Power Design 12 Duet Rail Power System
Cooling Design Extended Heatsinks and M.2 Shield Frozr II
RGB Support 2 × ARGB V2, 1 × RGB Headers
Diagnostics EZ Debug LEDs

Key Features

  • Intel B860 chipset with LGA 1851 support
  • Supports Intel Core Ultra Series 2 processors
  • DDR5 memory support up to 8600+ MT/s
  • PCIe 5.0 graphics card support
  • Triple M.2 storage slots
  • Integrated Killer Wi-Fi 7 networking
  • Killer 5Gb high-speed LAN connectivity
  • Thunderbolt 4 with 40Gbps bandwidth
  • Extended VRM and SSD cooling design
  • ARGB lighting and EZ Debug support


User Benefits

  • Supports high-end gaming and multitasking workloads
  • Provides faster storage and GPU upgrade support
  • Improves networking performance with Wi-Fi 7 and 5Gb LAN
  • Enhances cooling stability during heavy CPU loads
  • Suitable for compact gaming and creator PC builds
  • Allows cleaner cable management in Micro-ATX cases


Compatibility

  • Compatible with Intel Core Ultra Series 2 processors
  • Supports DDR5 memory modules
  • Compatible with PCIe 5.0 graphics cards
  • Fits Micro-ATX PC cases
  • Supports air and liquid cooling systems
  • Compatible with Windows 11 64-bit

Included Items

  • MSI B860 Micro-ATX Motherboard
  • Wi-Fi Antennas
  • SATA Cables
  • User Documentation
