GIGABYTE  |  SKU: 507152

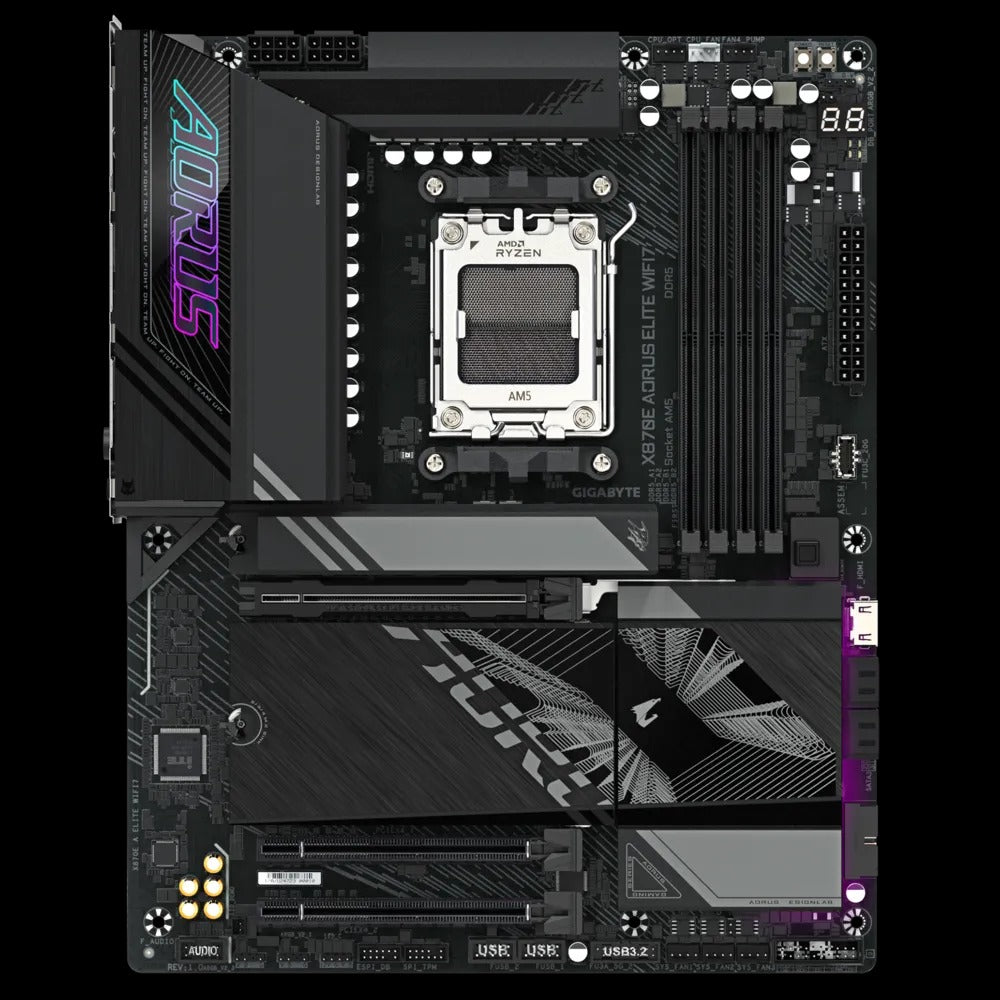

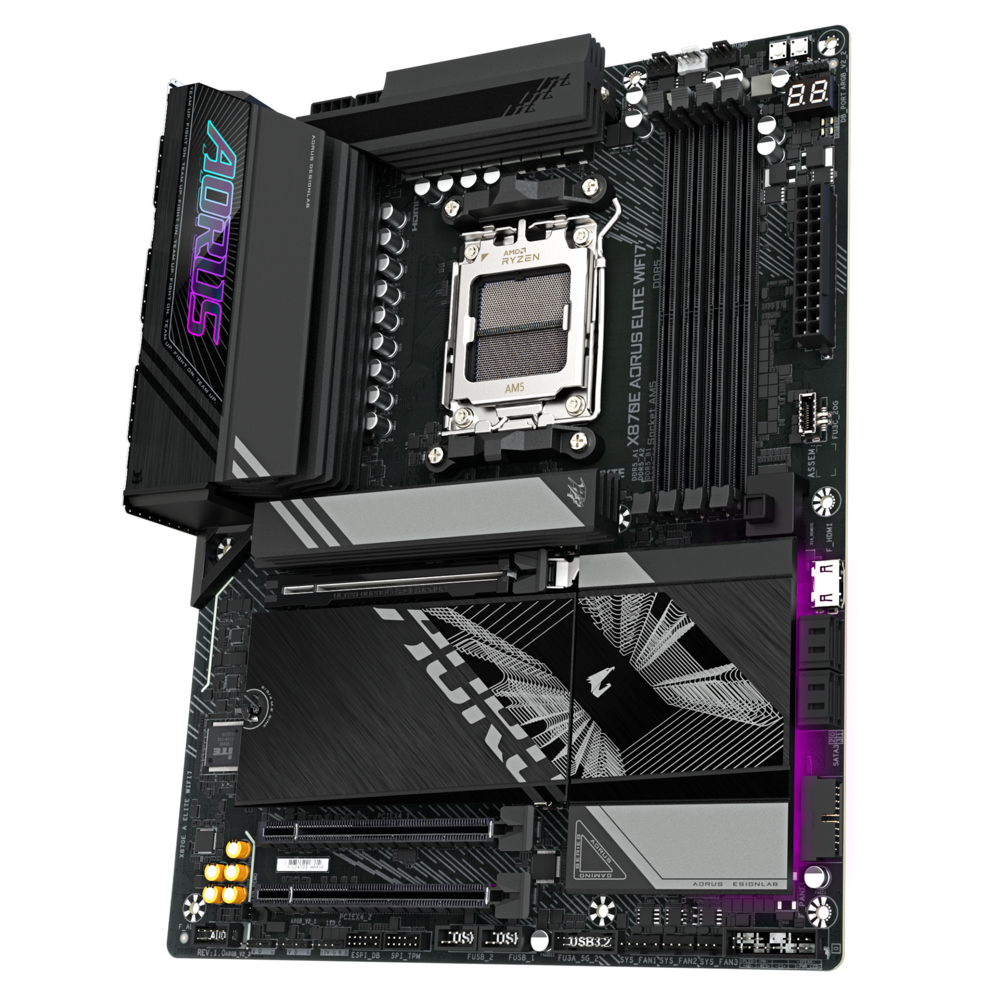

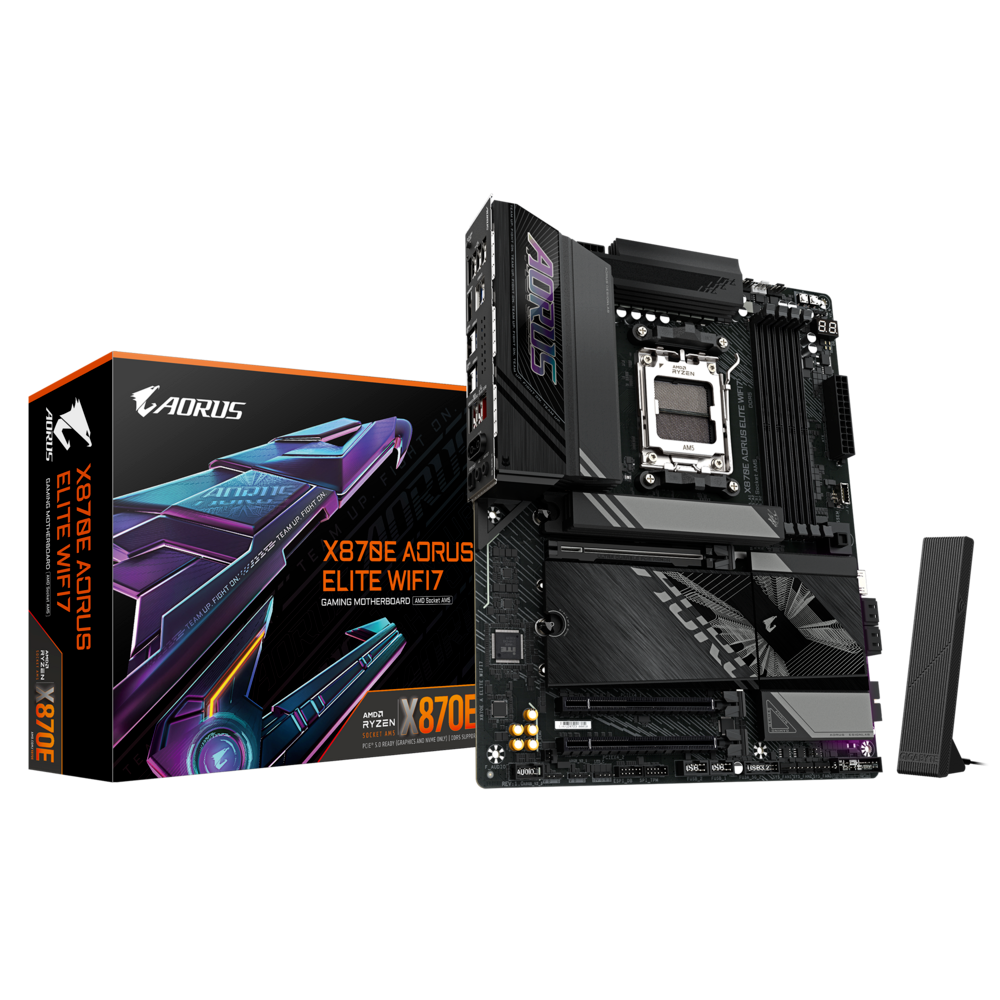

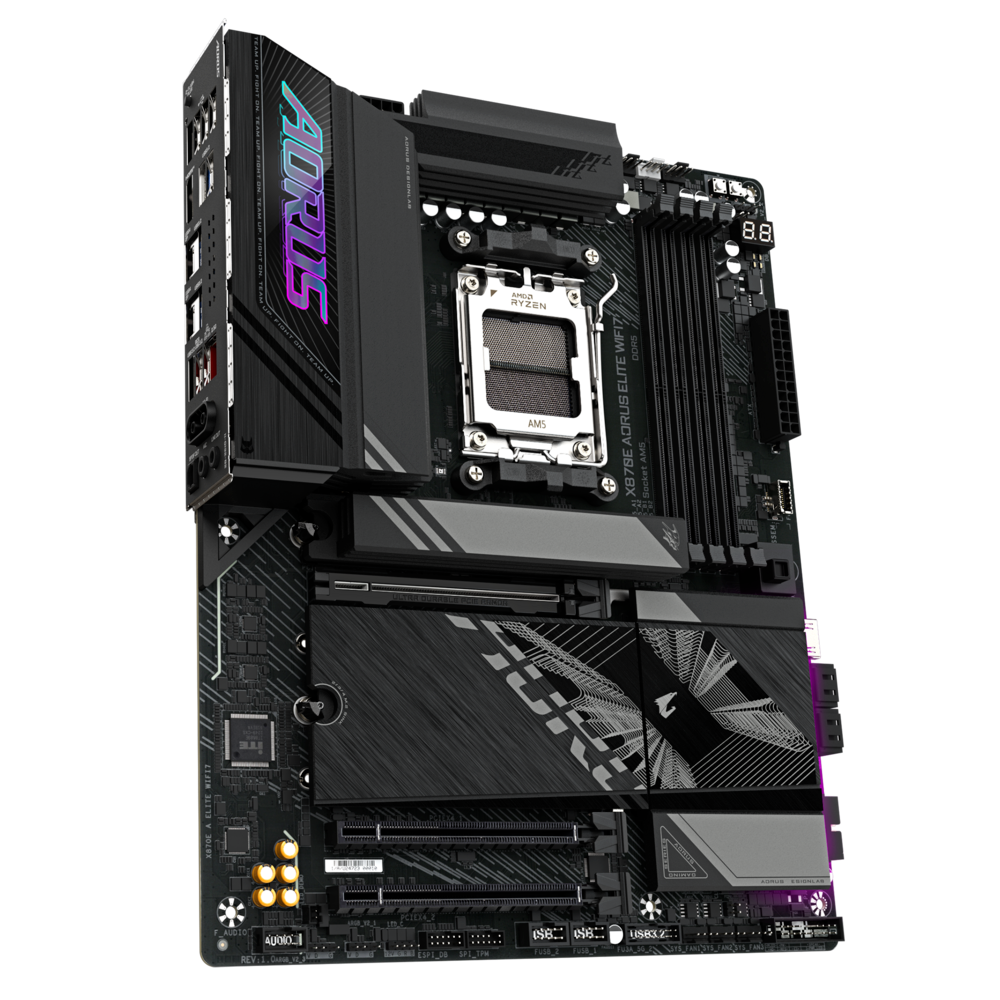

GigaByte X870E Aorus Elite Wifi7 AMD Ryzen DDR5 Gaming Motherboard

109.0 KD 116.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Orders Below 10 KD (Within 24 Hours): 1.5 KD
  • Express Delivery (90–180 min): 2.9 KD (Available before 08:00 PM)
  • Ultra Delivery (30–90 min): 3.9 KD
    (Available before 08:00 PM)
  • Ali Sabah Al Salim (Om Al Haiman), Sabah Al
    Ahmed, Al Metla'a Areas:
    5 KD
  • Digital Cards: Delivered for free
    directly via SMS

Available from 11:00 am to 08:00 pm (Friday starting at 2:00
pm). Deliveries after 8 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are
subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The GIGABYTE X870E motherboard is built for next-generation AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. It delivers advanced connectivity with PCIe 5.0, USB4, and Wi-Fi 7 support, along with DDR5 overclocking up to 8200 MT/s. Designed for gamers and creators, it features a powerful VRM, multi-display support, and a full range of high-speed storage options including PCIe 5.0 M.2 slots.

Key Features

  • Supports AMD Ryzen 9000, 8000, and 7000 Series processors.
  • AMD X870E chipset with PCIe 5.0 GPU and SSD support.
  • DDR5 memory overclocking up to 8200 MT/s, 256 GB max capacity.
  • Integrated AMD Radeon Graphics with USB4 and DisplayPort support.
  • HDMI 2.1, HDMI 1.4, and multiple USB4/USB 3.2 Gen2x2 ports.
  • Wi-Fi 7 and 2.5GbE LAN for ultra-fast networking.
  • Quad M.2 slots with PCIe 5.0 and PCIe 4.0 support.
  • Realtek ALC1220 audio with DSD support.
  • Full RGB/ARGB headers for custom lighting.
  • ATX form factor, designed for high-end gaming and workstation builds.

Specifications

Category Details
CPU Support AMD Socket AM5, Ryzen 9000 / 8000 / 7000 Series
Chipset AMD X870E
Memory DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s4× DDR5 DIMM slots, up to 256GBDual-channel, AMD EXPO and XMP support
Graphics Integrated AMD Radeon Graphics2× USB4 Type-C (DisplayPort, up to 3840×2160@240Hz)1× HDMI 2.1 (4096×2160@60Hz)1× Front HDMI 1.4 (1920×1080@30Hz)Supports up to 4 displays
Audio Realtek ALC1220 Codec2/4/5.1/7.1-channel HD AudioOptical S/PDIF Out

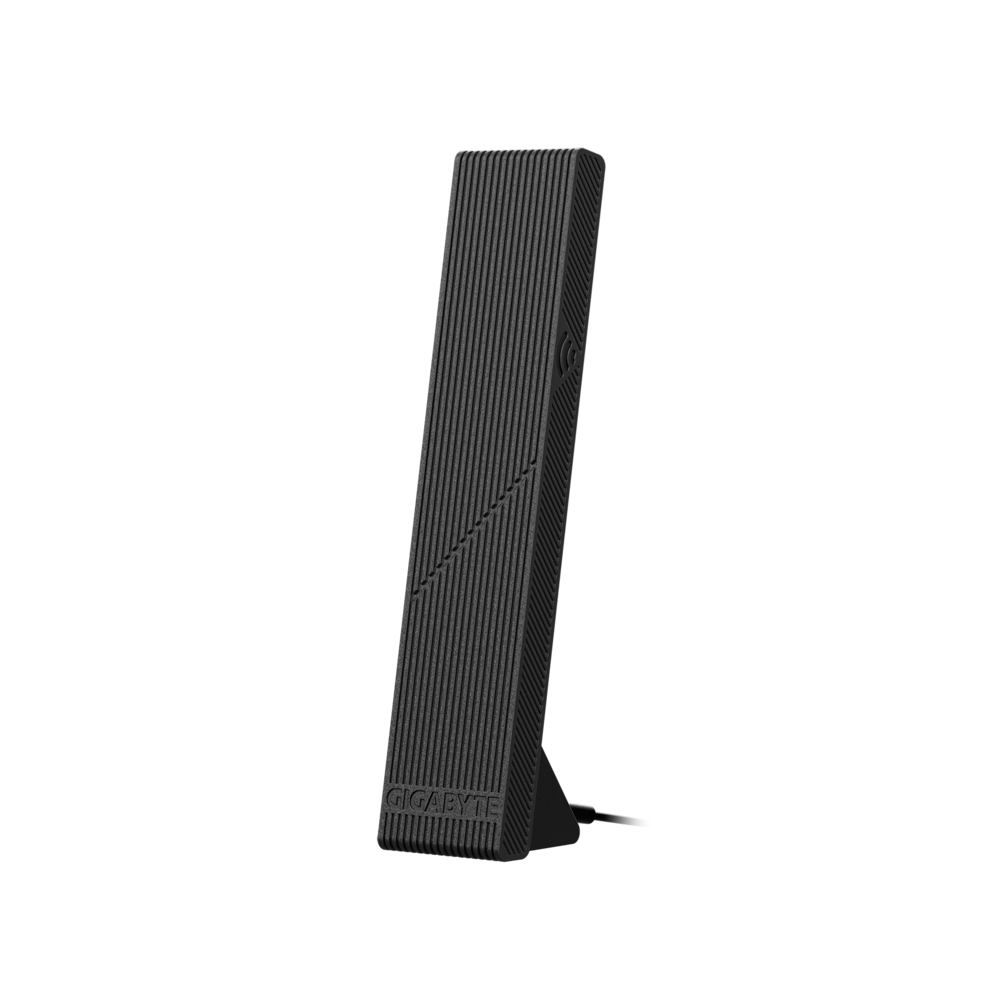

Networking Realtek 2.5GbE LANWi-Fi 7 with Bluetooth 5.4
Expansion Slots 1× PCIe 5.0 x16 (CPU)1× PCIe 4.0 x4 (Chipset)1× PCIe 3.0 x4 (Chipset)
Storage 4× M.2 Slots:• M2A_CPU: PCIe 5.0 x4/x2• M2B_CPU, M2C_CPU: PCIe 5.0 x4/x2• M2D_SB: PCIe 4.0 x4/x24× SATA 6Gb/s connectorsRAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA
USB Ports 2× USB4 Type-C (rear)1× USB 3.2 Gen 2x2 Type-C (front)2× USB 3.2 Gen 2 Type-A7× USB 3.2 Gen 18× USB 2.0
Internal I/O 24-pin ATX main power, 2× 8-pin CPU powerMultiple fan/pump headers3× ARGB Gen2 headers, 1× RGB headerTPM, Clear CMOS, Reset, Power buttons

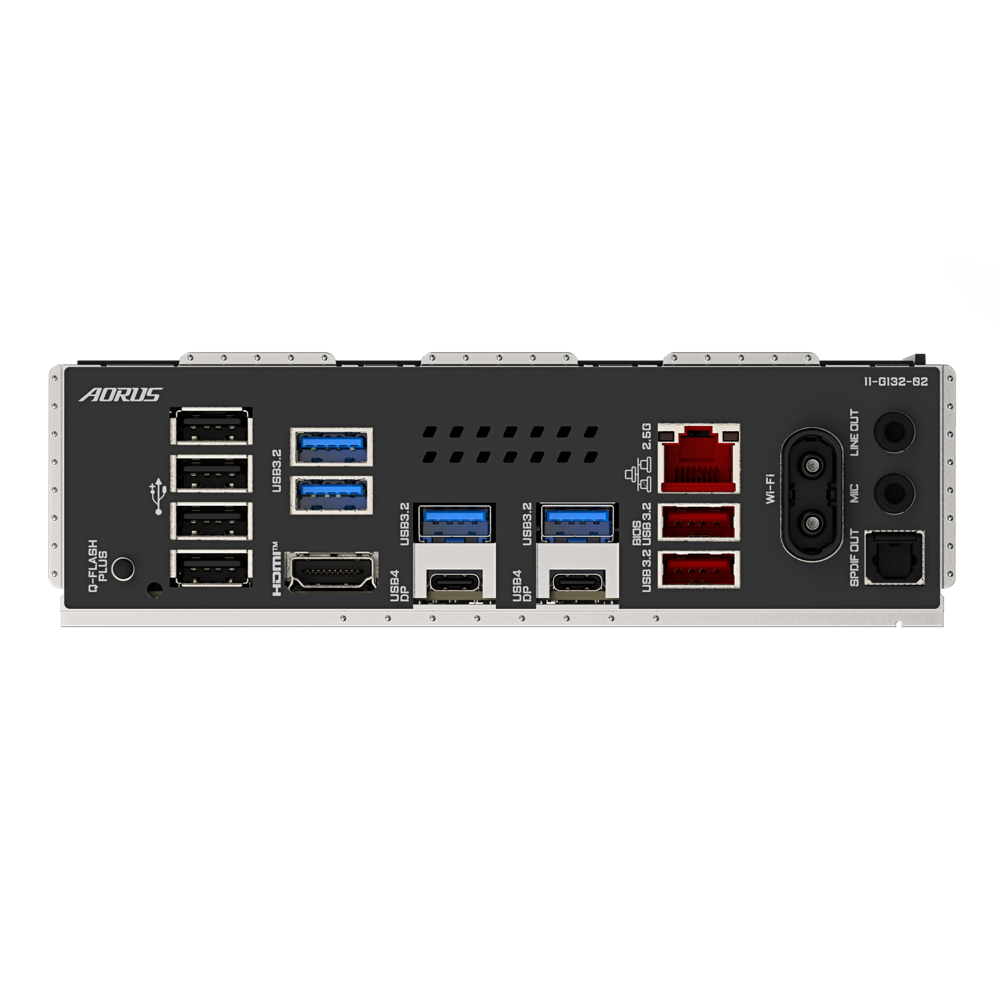

Back Panel Q-Flash Plus buttonAudio jacks with optical S/PDIF2× Antenna connectorsHDMI, USB4, USB3.2, USB2.0, RJ-45 LAN
Software & Features GIGABYTE Control Center (GCC)Q-Flash, Q-Flash PlusSmart Backup
BIOS AMI UEFI BIOS, 256 Mbit Flash
Form Factor ATX, 30.5 × 24.4 cm
