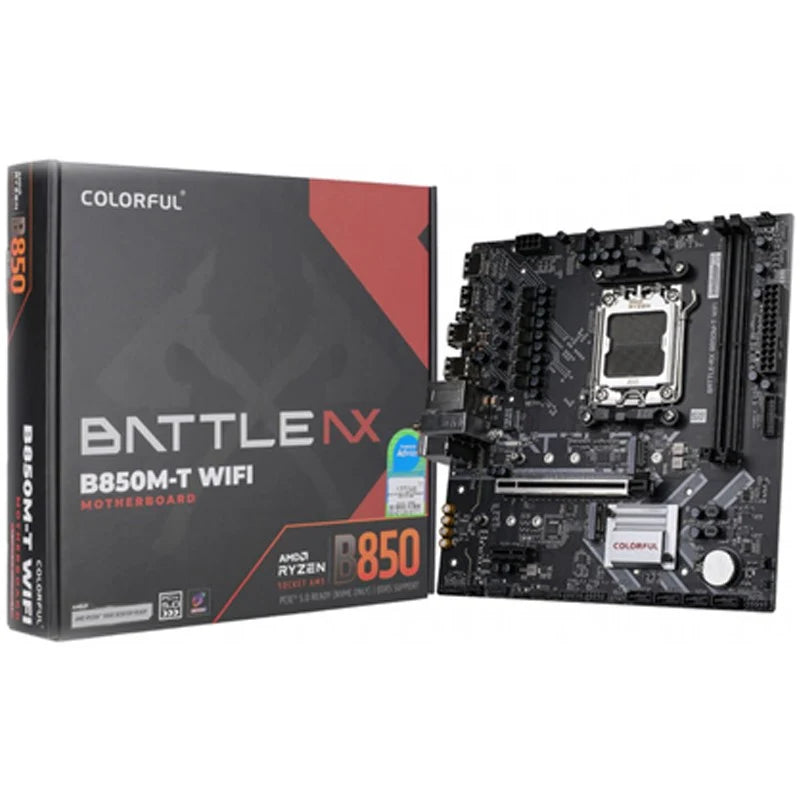

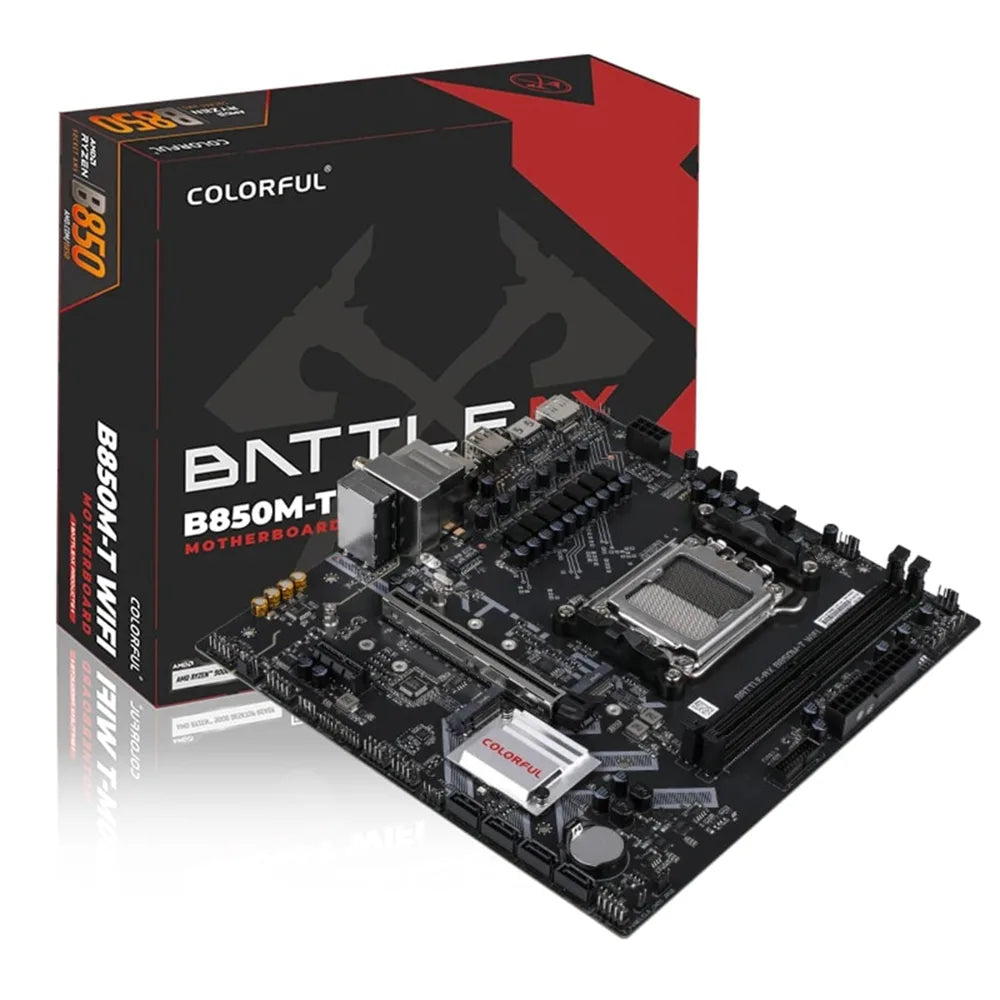

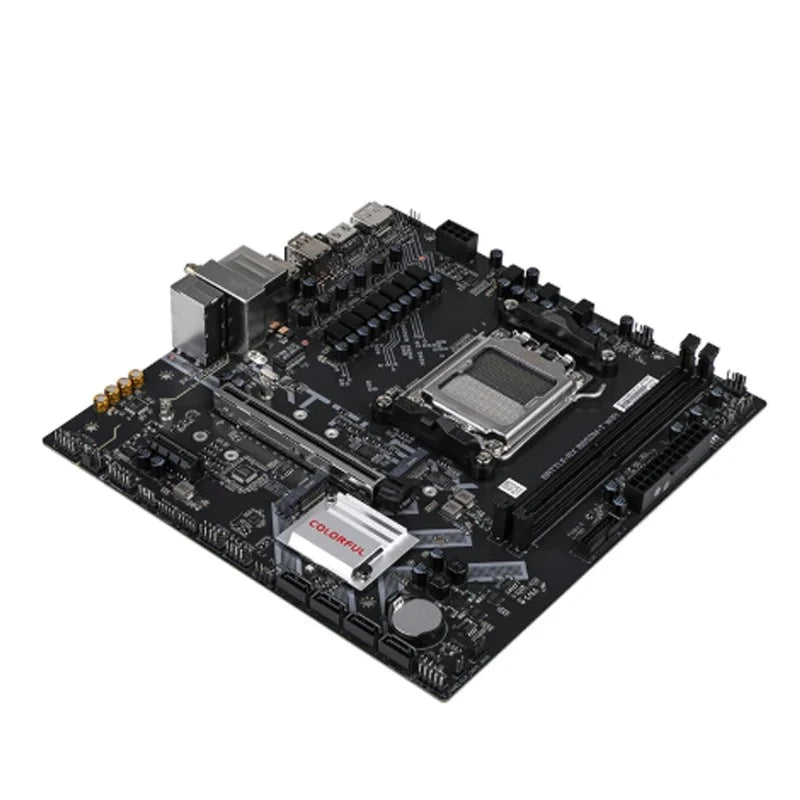

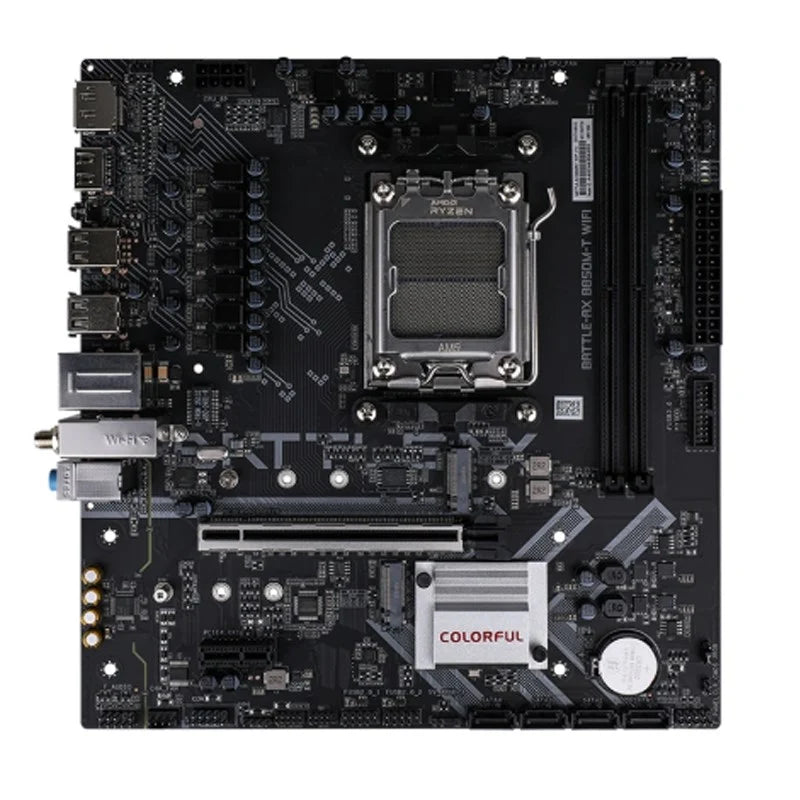

Colorful BATTLE-AX B850M-T WIFI V14 DDR5 M-ATX Gaming Motherboard is designed for modern AMD gaming and performance PC builds, combining the AMD B850 chipset, AM5 socket, DDR5 memory support, high-speed PCIe connectivity, and integrated wireless networking in a compact Micro-ATX form factor.

The motherboard supports AMD AM5 processors and features two DDR5 DIMM slots with dual-channel memory architecture, PCIe 5.0 graphics connectivity, two M.2 SSD slots, and four SATA interfaces for flexible high-speed storage expansion.

Built for stable gaming and everyday performance, the BATTLE-AX B850M-T WIFI V14 also includes 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3, one-click BIOS upgrade functionality, iGame Center lighting control support, and multiple protection technologies for reliable long-term operation.


Technical Specifications

Motherboard Specifications
Brand Colorful
Series BATTLE-AX
Model B850M-T WIFI V14
Chipset AMD B850
CPU Socket AMD AM5
Form Factor Micro-ATX
Memory Type DDR5
Memory Slots 2 × DDR5 DIMM
Memory Channels Dual Channel
Maximum Memory Speed Up to DDR5 7200MT/s (OC)
Graphics Expansion Slot 1 × PCIe 5.0 x16
Additional Expansion Slot 1 × PCIe 4.0 x1
M.2 Slots 2
Primary M.2 Interface PCIe 5.0 x4
Secondary M.2 Interface PCIe 4.0 x4
SATA Ports 4 × SATA 6Gb/s
Ethernet 2.5Gb LAN
Wireless Wi-Fi 6E
Bluetooth Bluetooth 5.3
Audio Codec Realtek ALC897
Audio Channels Up to 7.1-Channel Audio
Display Output HDMI 2.0 + DisplayPort 1.2
BIOS Feature One-Click BIOS Upgrade
Lighting Control iGame Center RGB Lighting Control
Dimensions Approximately 230 × 220 mm

Key Features

  • AMD B850 chipset for modern AM5 gaming systems
  • Supports AMD AM5 desktop processors
  • DDR5 dual-channel memory support
  • Memory speeds up to DDR5 7200MT/s through overclocking
  • PCIe 5.0 x16 graphics card interface
  • Two M.2 SSD slots for high-speed NVMe storage
  • PCIe 5.0 x4 support on the primary M.2 slot
  • Four SATA ports for additional storage devices
  • Integrated 2.5Gb Ethernet networking
  • Built-in Wi-Fi 6E wireless connectivity
  • Bluetooth 5.3 support
  • Realtek ALC897 audio solution
  • One-click BIOS upgrade functionality on the rear I/O
  • Supports iGame Center lighting synchronization and control
  • Six protection technologies for improved system stability
  • 200-step testing process for enhanced product reliability
  • Compact Micro-ATX design for versatile PC builds

User Benefits

  • Provides a modern platform for AMD AM5 gaming systems
  • DDR5 support delivers high memory bandwidth for gaming and multitasking
  • PCIe 5.0 support provides compatibility with next-generation expansion devices
  • Dual M.2 slots allow fast NVMe storage configurations
  • 2.5Gb LAN provides faster wired networking for gaming and large file transfers
  • Wi-Fi 6E enables fast and flexible wireless connectivity
  • Bluetooth 5.3 supports compatible wireless peripherals and accessories
  • Compact Micro-ATX format fits a wide range of PC cases
  • One-click BIOS upgrade simplifies firmware maintenance
  • Integrated RGB control helps synchronize compatible PC lighting components
  • Multiple protection technologies enhance long-term system reliability

Compatibility

  • Compatible with supported AMD AM5 desktop processors
  • Compatible with DDR5 desktop memory modules
  • Compatible with Micro-ATX and larger PC cases
  • Compatible with PCI Express x16 graphics cards
  • Supports PCIe 5.0 graphics devices
  • Compatible with M.2 2242, 2260, and 2280 NVMe SSDs
  • Supports PCIe 5.0 x4 and PCIe 4.0 x4 M.2 storage
  • Compatible with SATA storage devices
  • Supports compatible Wi-Fi 6E wireless networks
  • Supports Bluetooth-compatible peripherals
  • Compatible with HDMI and DisplayPort displays when using a processor with integrated graphics

Included Items

  • Colorful BATTLE-AX B850M-T WIFI V14 DDR5 M-ATX Gaming Motherboard
  • Wi-Fi Antenna
  • SATA Cable
  • Installation Accessories
  • User Documentation
