ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard

72.0 KD 78.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Orders Below 10 KD (Within 24 Hours): 1.5 KD
  • Express Delivery (90–180 min): 2.9 KD (Available before 08:00 PM)
  • Ultra Delivery (30–90 min): 3.9 KD
    (Available before 08:00 PM)
  • Ali Sabah Al Salim (Om Al Haiman), Sabah Al
    Ahmed, Al Metla'a Areas:
    5 KD
  • Digital Cards: Delivered for free
    directly via SMS

Available from 11:00 am to 08:00 pm (Friday starting at 2:00
pm). Deliveries after 8 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are
subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

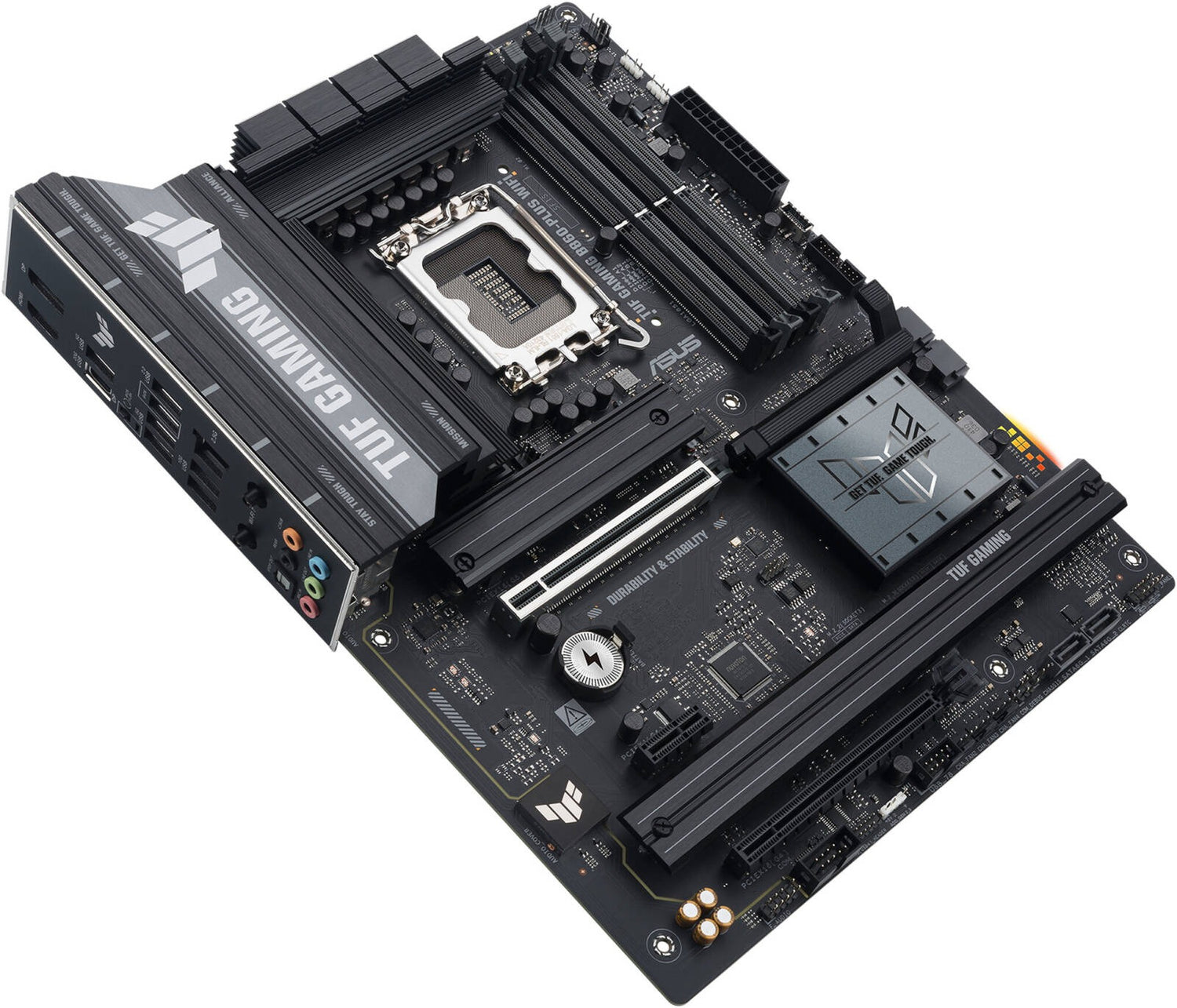

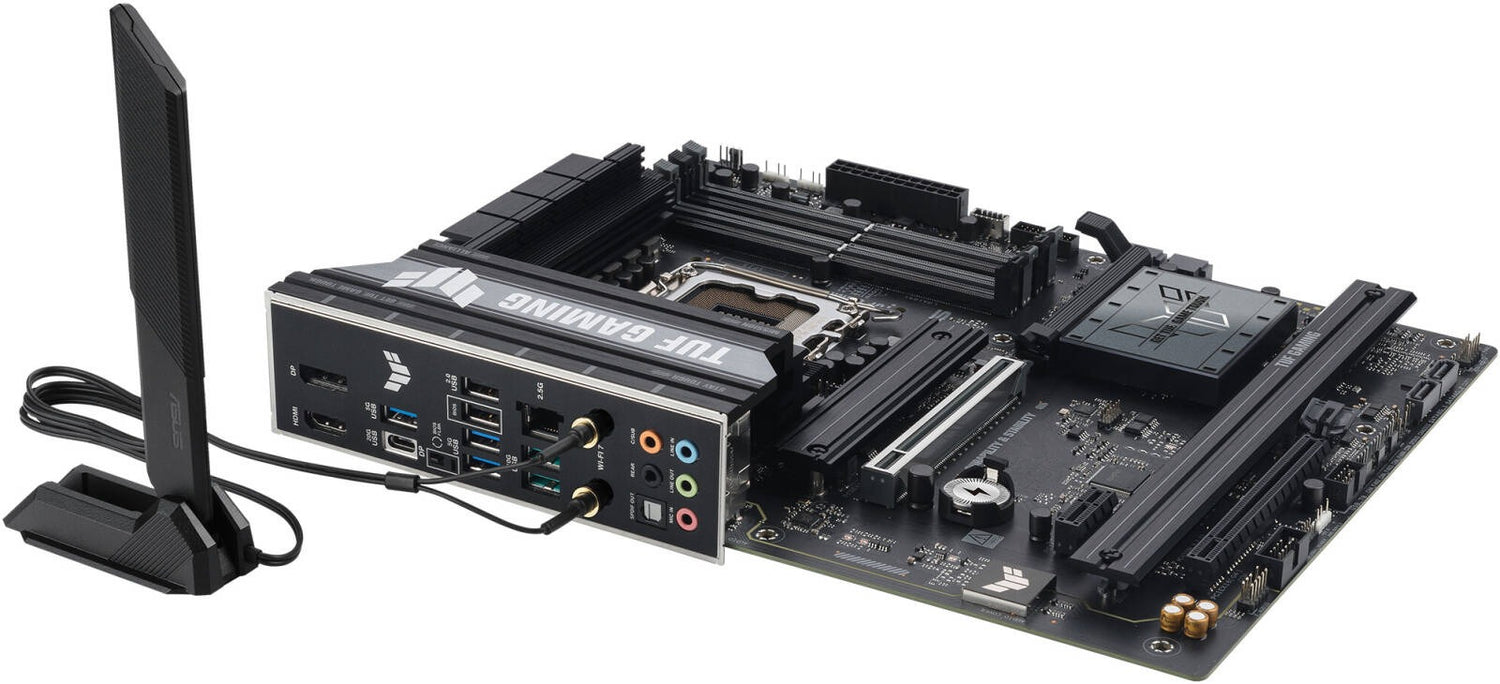

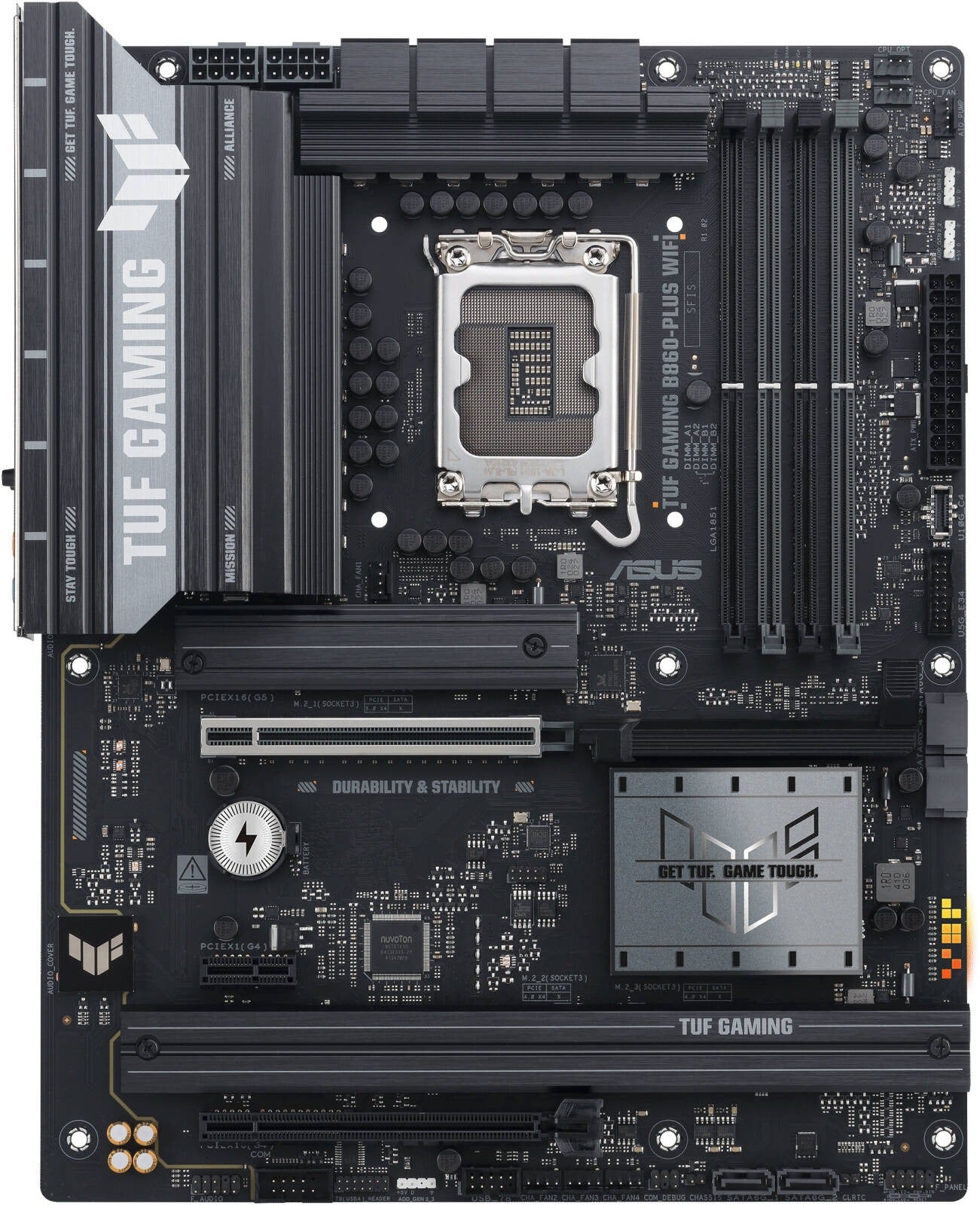

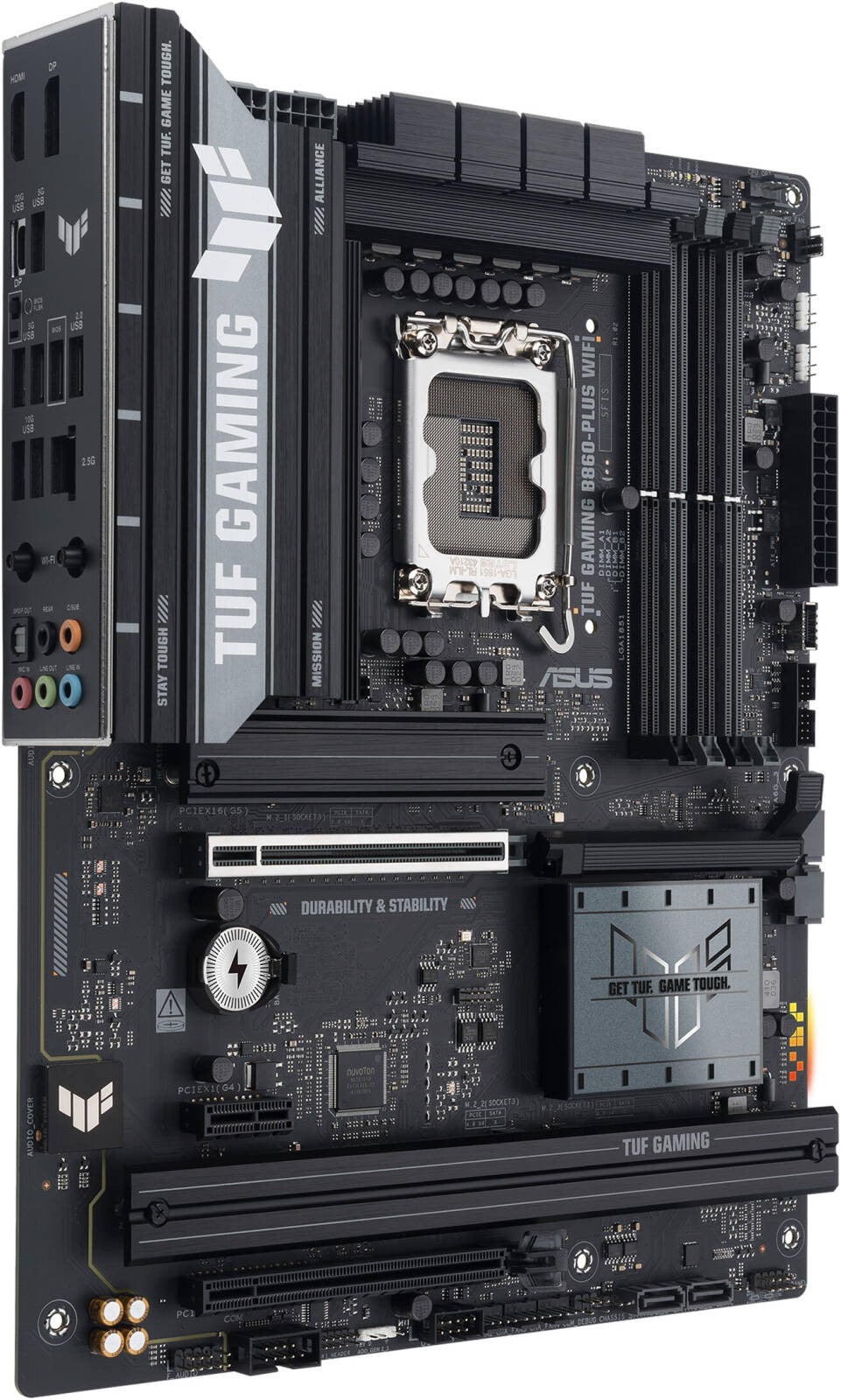

ASUS TUF Gaming B860-Plus WiFi is an ATX gaming motherboard designed for Intel Core Ultra Processors Series 2 with advanced connectivity, stable power delivery, and enhanced cooling performance for modern gaming systems.

Built with the Intel B860 chipset and LGA 1851 socket, the motherboard features a durable 12+1+2+1 phase DrMOS power design, DDR5 memory support, PCIe 5.0 expansion, and next-generation networking through WiFi 7 and Realtek 2.5Gb Ethernet.

The motherboard also includes multiple M.2 slots with dedicated heatsinks, Aura Sync RGB lighting, and DIY-friendly installation features to improve system building, cooling performance, and long-term reliability.


Technical Specifications

Motherboard Specifications
Model ASUS TUF Gaming B860-Plus WiFi
Form Factor ATX
Socket LGA 1851
Chipset Intel B860
Processor Support Intel Core Ultra Processors Series 2
Power Design 12 + 1 + 2 + 1 Phase Design
Power Stage Rating 80A DrMOS
VRM Cooling Enlarged VRM Heatsinks
Memory Type DDR5
Memory Slots 4 × DIMM
Memory Support Dual Channel DDR5
Memory Optimization AEMP III, DIMM Fit
PCIe Slot 1 1 × PCIe 5.0 x16 SafeSlot
PCIe Slot 2 1 × PCIe 4.0 x16
PCIe Slot 3 1 × PCIe 4.0 x1
M.2 Slots 3 × M.2
PCIe 5.0 M.2 1 × PCIe 5.0 x4
PCIe 4.0 M.2 2 × PCIe 4.0 x4
Ethernet Realtek 2.5Gb Ethernet
Wireless WiFi 7

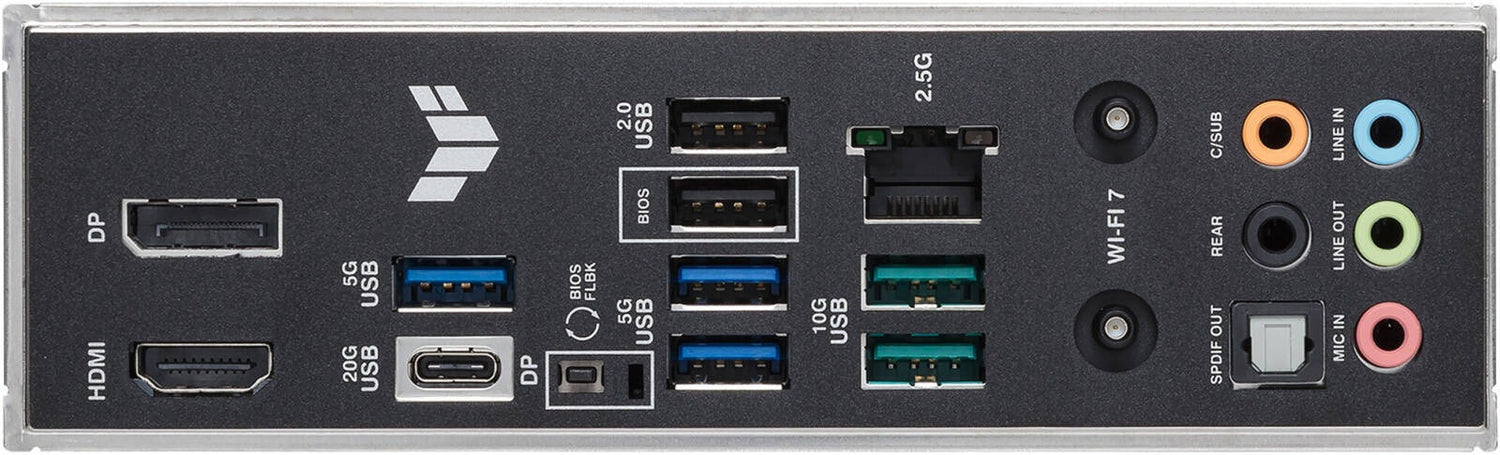

Rear USB Type-C USB 20Gbps Type-C with DisplayPort Alt Mode
Front USB USB 10Gbps Type-C
Video Outputs HDMI, DisplayPort
Audio Realtek 7.1 Channel Audio with DTS Support
Cooling Headers CPU, CPU_OPT, AIO Pump, 4 × Chassis Fan Headers
RGB Support Aura Sync
ARGB Headers 3 × Addressable Gen2 RGB Headers
DIY Features PCIe Q-Release, M.2 Q-Latch, BIOS FlashBack

Key Features

  • Supports Intel Core Ultra Series 2 processors
  • 12+1+2+1 phase DrMOS power design
  • DDR5 memory optimization with AEMP III
  • PCIe 5.0 graphics card support
  • Triple M.2 NVMe storage slots
  • Dedicated VRM and SSD heatsinks
  • Integrated WiFi 7 networking
  • Realtek 2.5Gb high-speed LAN
  • USB 20Gbps Type-C connectivity
  • Aura Sync RGB lighting support


User Benefits

  • Provides stable gaming performance during heavy workloads
  • Supports future GPU and SSD upgrades with PCIe 5.0
  • Improves networking stability for gaming and streaming
  • Enhances cooling efficiency for long gaming sessions
  • Simplifies installation with DIY-friendly features
  • Suitable for gaming, streaming, and workstation builds


Compatibility

  • Compatible with Intel Core Ultra Series 2 processors
  • Supports DDR5 memory kits
  • Compatible with PCIe 5.0 graphics cards
  • Fits ATX PC cases
  • Supports air and liquid cooling systems
  • Compatible with Windows 11 64-bit

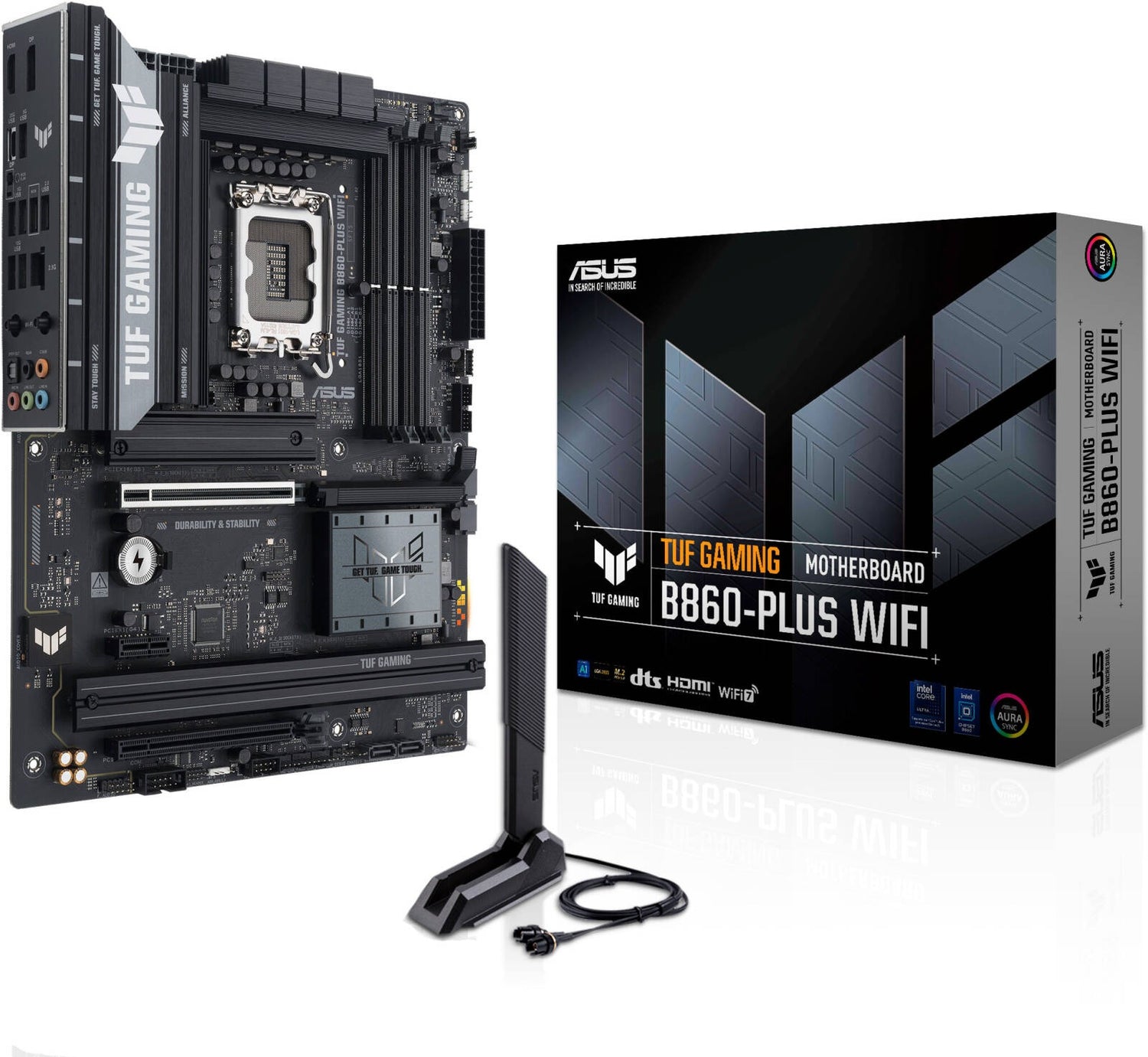

Included Items

  • ASUS TUF Gaming B860-Plus WiFi Motherboard
  • WiFi Q-Antenna
  • SATA Cables
  • M.2 Mounting Accessories
  • I/O Shield
  • User Manual and Documentation
