Asus  |  SKU: 509858

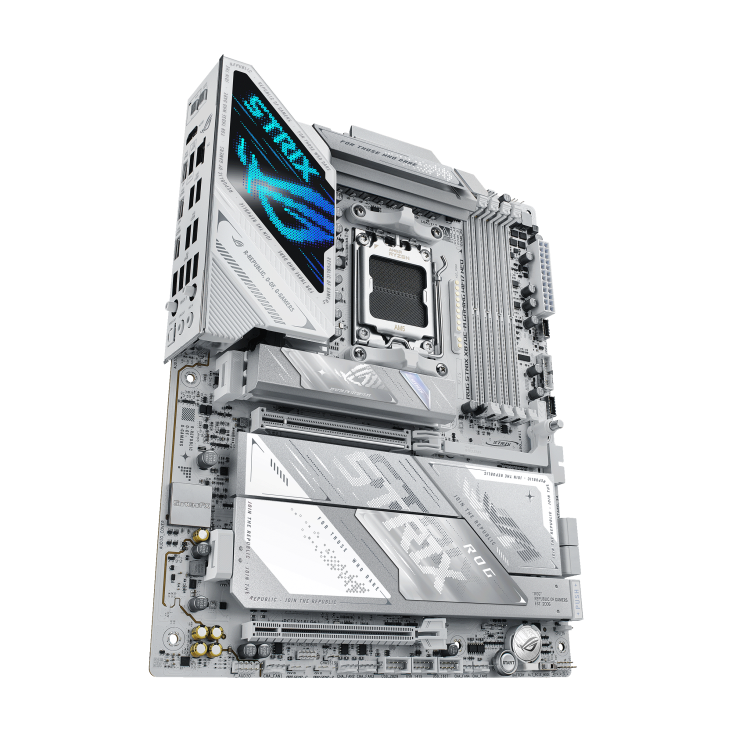

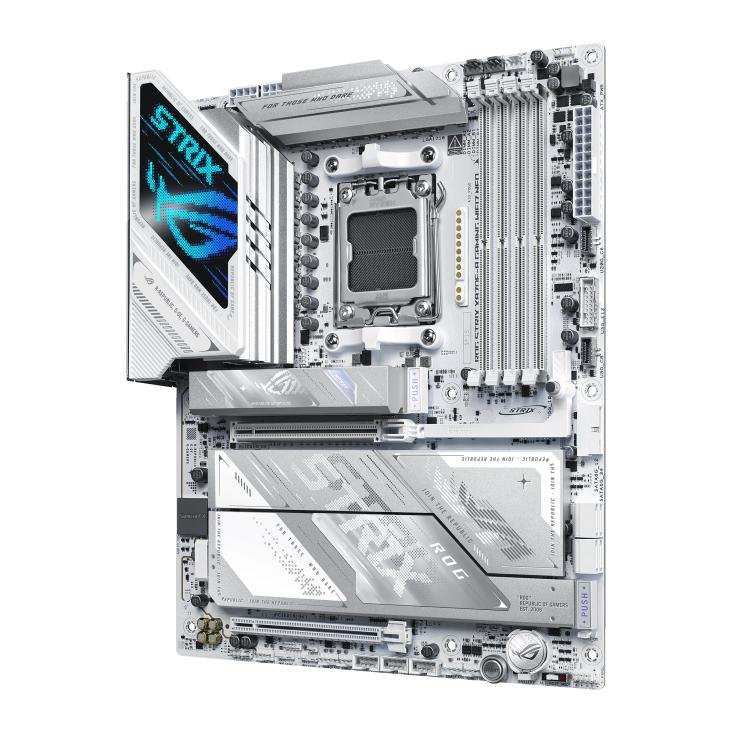

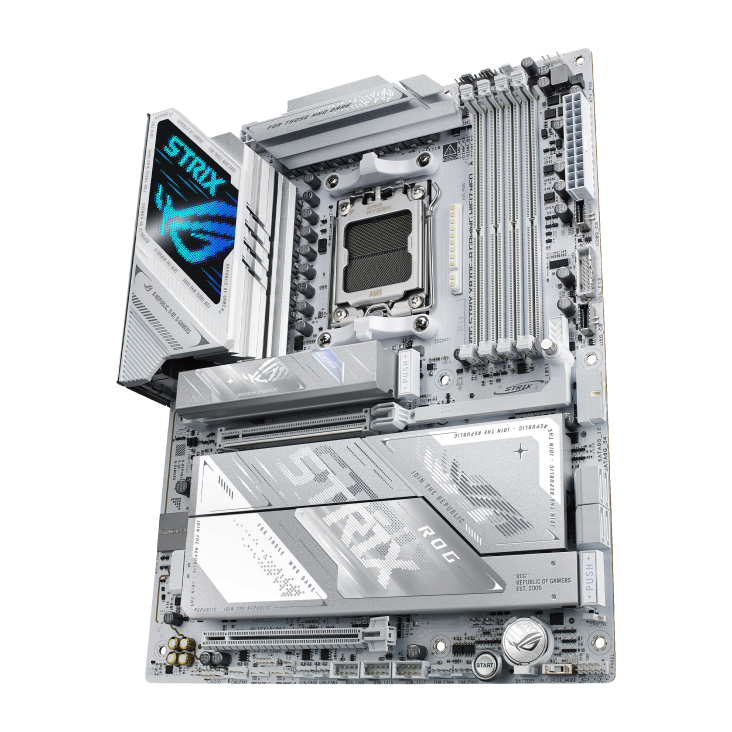

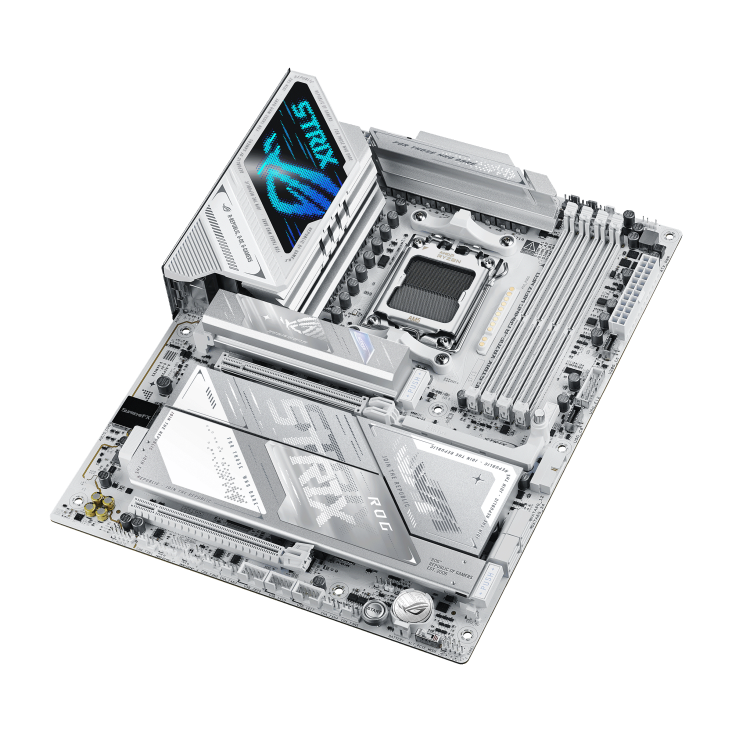

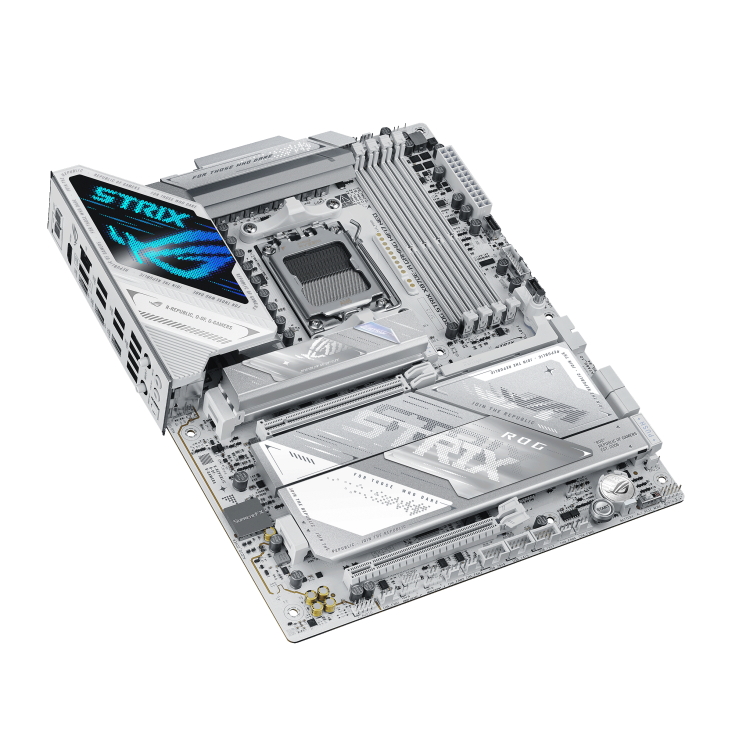

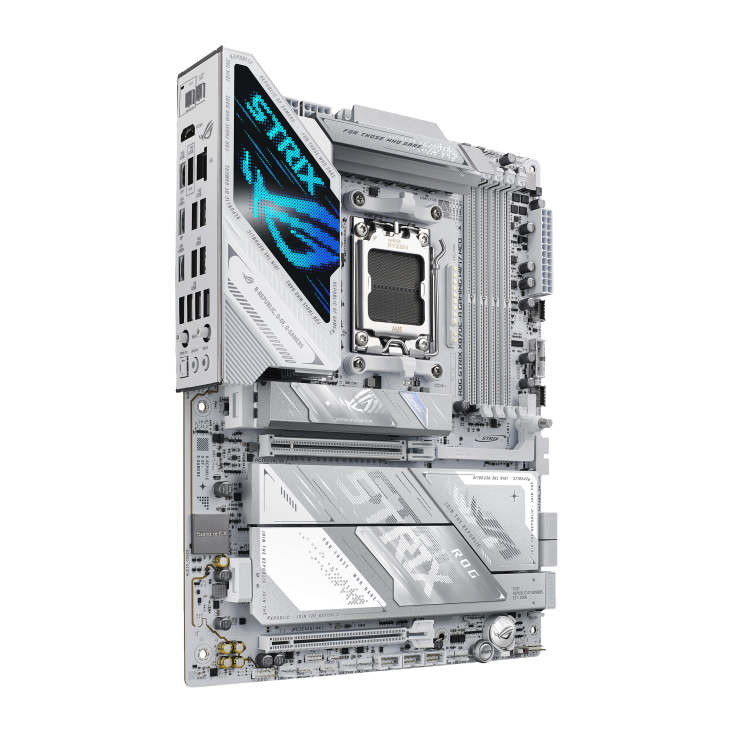

Asus Rog Strix X870E-A Wifi Neo Gaming DDR5 Motherboard - White

165.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Orders Below 10 KD (Within 24 Hours): 1.5 KD
  • Express Delivery (90–180 min): 2.9 KD (Available before 08:00 PM)
  • Ultra Delivery (30–90 min): 3.9 KD
    (Available before 08:00 PM)
  • Ali Sabah Al Salim (Om Al Haiman), Sabah Al
    Ahmed, Al Metla'a Areas:
    5 KD
  • Digital Cards: Delivered for free
    directly via SMS

Available from 11:00 am to 08:00 pm (Friday starting at 2:00
pm). Deliveries after 8 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are
subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The ASUS ROG Strix X870E-A WiFi Neo is a premium white ATX gaming motherboard built on the AMD X870E chipset for AM5 processors including the Ryzen 9000 and Ryzen 7000 series. It features a robust 18+2 power stage VRM design for reliable overclocking, four DDR5 DIMM slots supporting up to 256GB and DDR5-8200+, dual PCIe 5.0 x16 slots, four M.2 slots (including PCIe 5.0 x4), and comprehensive wireless connectivity with WiFi 7 and Bluetooth 5.4.

The all-white aesthetic is complemented by addressable AURA SYNC RGB lighting. It also includes a front-panel USB 3.2 Gen 2x2 Type-C port and Thunderbolt 4 support.

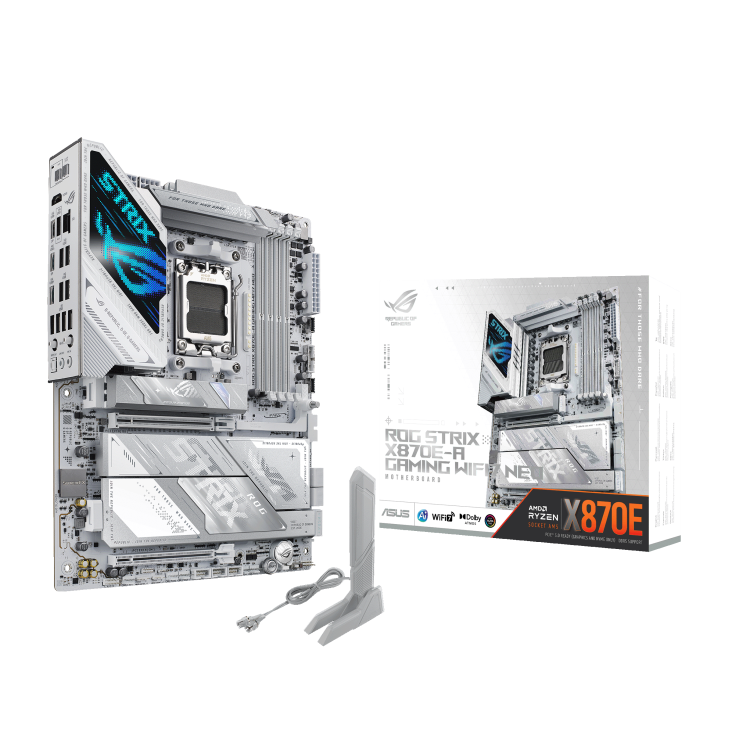

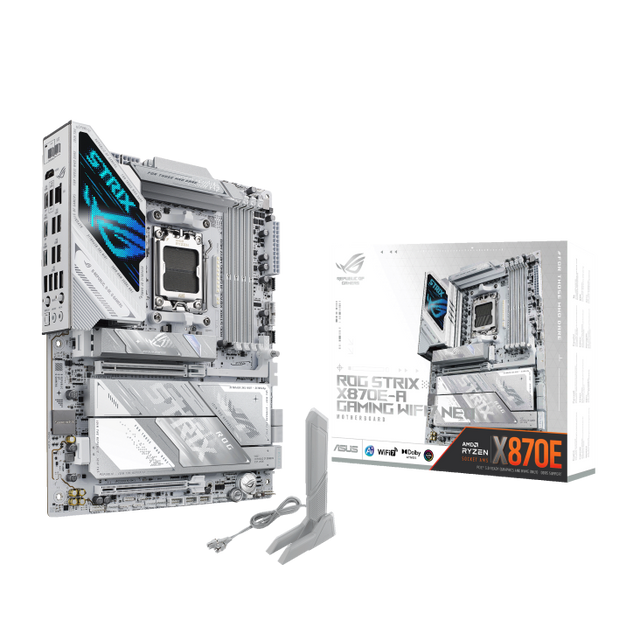

What's in the Box

Package Contents
Motherboard 1 x ASUS ROG Strix X870E-A WiFi Neo -- White
SATA Cables 4 x SATA 6Gb/s Cables
M.2 Rubber Package 1 x M.2 Rubber Package
ROG Strix Sticker 1 x ROG Strix Sticker
Cable Ties 1 x Pack of Cable Ties
WiFi Antenna 1 x WiFi Moving Antenna
Documentation 1 x Quick Start Guide / 1 x Safety Guide
Software ASUS ARMOURY CRATE -- Download from ASUS Support Site

Technical Specifications

General Information
Brand ASUS ROG (Republic of Gamers)
Model ROG Strix X870E-A WiFi Neo
Color White
Form Factor ATX (305 x 244mm)
Chipset AMD X870E
CPU Socket AM5 (LGA 1718)
Compatible CPUs AMD Ryzen 9000 Series / Ryzen 7000 Series (AM5)
BIOS 1 x 256Mb Flash ROM -- UEFI AMI BIOS
Power Delivery and VRM
Power Stages 18+2 Power Stages
CPU Power Connectors 2 x 8-pin EPS (ProCool II Connectors)
Memory
Memory Type DDR5 -- Non-ECC Unbuffered DIMM
Memory Slots 4 x DIMM Slots
Max Memory Capacity 256 GB
Memory Channels Dual Channel
JEDEC Speed DDR5-4800 / DDR5-5600 (JEDEC)
OC Speed (EXPO/XMP) Up to DDR5-8200+ (OC via EXPO/XMP Profile)
Expansion Slots
PCIe x16 Slot 1 PCIe 5.0 x16 (CPU) -- Primary GPU Slot
PCIe x16 Slot 2 PCIe 4.0 x4 (Chipset)
PCIe x1 Slots 1 x PCIe 3.0 x1 (Chipset)
Storage
M.2 Slot 1 (CPU) PCIe 5.0 x4 -- Supports 2242 / 2260 / 2280 / 22110
M.2 Slot 2 (CPU) PCIe 5.0 x4 -- Supports 2242 / 2260 / 2280 / 22110
M.2 Slot 3 (Chipset) PCIe 4.0 x4 -- Supports 2242 / 2260 / 2280
M.2 Slot 4 (Chipset) PCIe 4.0 x4 -- Supports 2242 / 2260 / 2280
SATA Ports 4 x SATA 6Gb/s Ports
RAID Support RAID 0 / 1 / 10 (SATA)
Networking and Wireless
Ethernet 2.5Gb Ethernet (Intel I226-V Controller)
WiFi Standard WiFi 7 (802.11be) -- 2.4GHz / 5GHz / 6GHz
Max WiFi Speed Up to 5765 Mbps
Bluetooth Bluetooth 5.4
WiFi Antenna 1 x Moving Antenna Included
Rear I/O Ports
USB 3.2 Gen 2x2 Type-C 2 x (20Gbps)
USB 3.2 Gen 2 Type-A 4 x (10Gbps)
USB 3.2 Gen 1 Type-A 2 x (5Gbps)
USB 2.0 Type-A 2 x
Thunderbolt 4 (USB-C) 1 x (40Gbps)
HDMI 1 x HDMI 2.1 (iGPU Output)
DisplayPort 1 x DisplayPort 1.4 (iGPU Output)
Audio Jacks 5 x 3.5mm Analog Audio Jacks + 1 x Optical S/PDIF Out
BIOS FlashBack Button Yes -- Update BIOS Without CPU or RAM
Clear CMOS Button Yes
Audio
Audio Codec ROG SupremeFX 7.1 Surround Sound -- Realtek ALC4082
ESS DAC ESS ES9219Q Quad DAC
SNR 120dB (Line-Out) / 110dB (Line-In)
Optical Output Yes -- S/PDIF Out
RGB and Lighting
RGB System ASUS AURA SYNC RGB
ARGB Headers 3 x 3-pin ARGB Gen 2 Headers
RGB Headers 1 x 4-pin RGB Header
Onboard RGB Zones PCH Heatsink / I/O Cover / Back Panel

Key Features

  • AMD X870E Chipset -- Top-Tier AM5 Platform: X870E delivers the highest feature set on AM5, combining PCIe 5.0 for GPU and storage, USB4, and full overclocking support for Ryzen 9000 and 7000 CPUs.
  • 18+2 Power Stages -- Rock-Solid VRM for OC: Robust 18+2 power delivery with ProCool II connectors ensures clean, stable power to the CPU under heavy overclocking and sustained all-core workloads.
  • DDR5-8200+ Support -- Extreme Memory Overclocking: Four DDR5 DIMM slots support up to 256GB and memory speeds up to DDR5-8200+ via EXPO and XMP profiles for maximum bandwidth in gaming and creation.
  • Dual PCIe 5.0 M.2 Slots -- Next-Gen SSD Ready: Two CPU-direct PCIe 5.0 x4 M.2 slots support the latest Gen 5 NVMe SSDs delivering sequential reads beyond 14,000 MB/s without chipset bottlenecks.

  • WiFi 7 and Bluetooth 5.4 -- Fastest Wireless Built-In: 802.11be WiFi 7 across 2.4GHz, 5GHz, and 6GHz bands delivers up to 5765 Mbps wireless speeds for lag-free gaming and streaming.
  • Thunderbolt 4 Rear Port -- 40Gbps Universal Connectivity: Rear Thunderbolt 4 USB-C port provides 40Gbps data transfer, 4K display output, and power delivery for the latest pro peripherals and docks.
  • ROG SupremeFX Audio -- ESS Quad DAC: Onboard SupremeFX 7.1 powered by Realtek ALC4082 and an ESS ES9219Q Quad DAC delivers 120dB SNR audiophile-grade sound without a separate sound card.
  • All-White Aesthetic -- AURA SYNC RGB: Full white PCB, heatsinks, and shrouds pair with AURA SYNC RGB across three ARGB Gen 2 headers and onboard lighting zones for complete white build customization.
