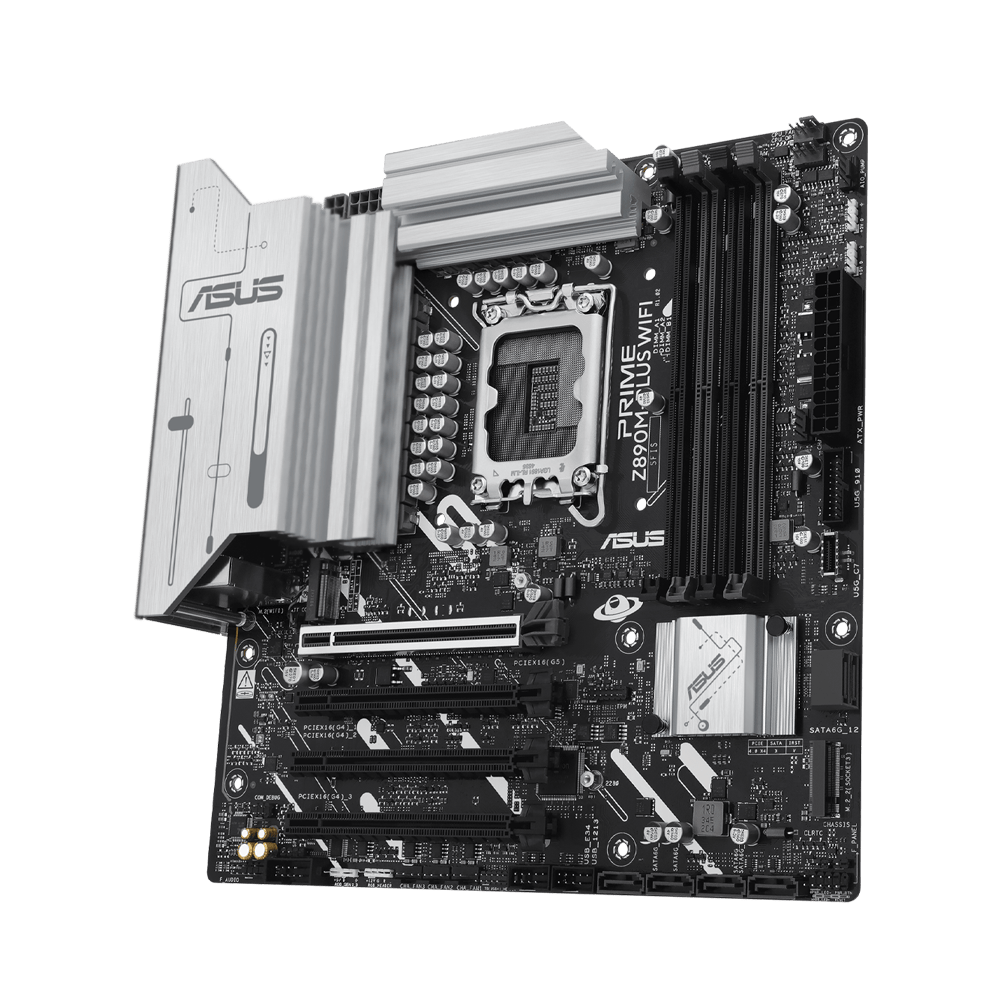

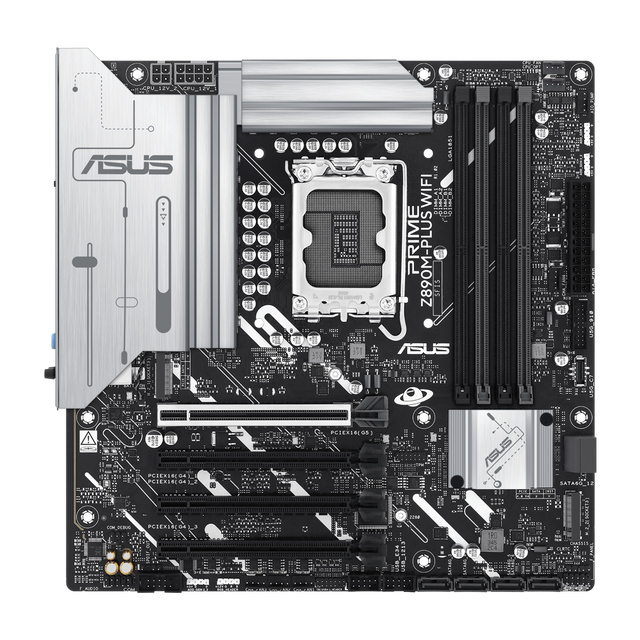

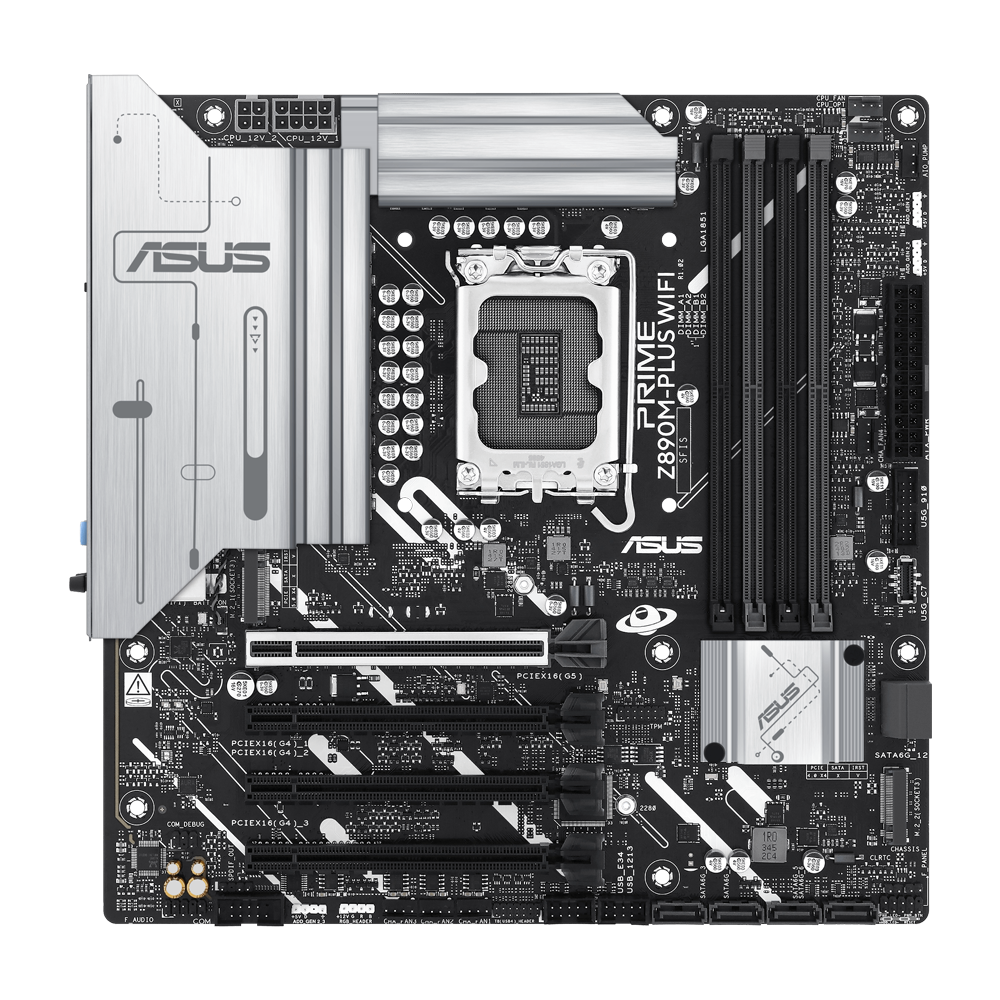

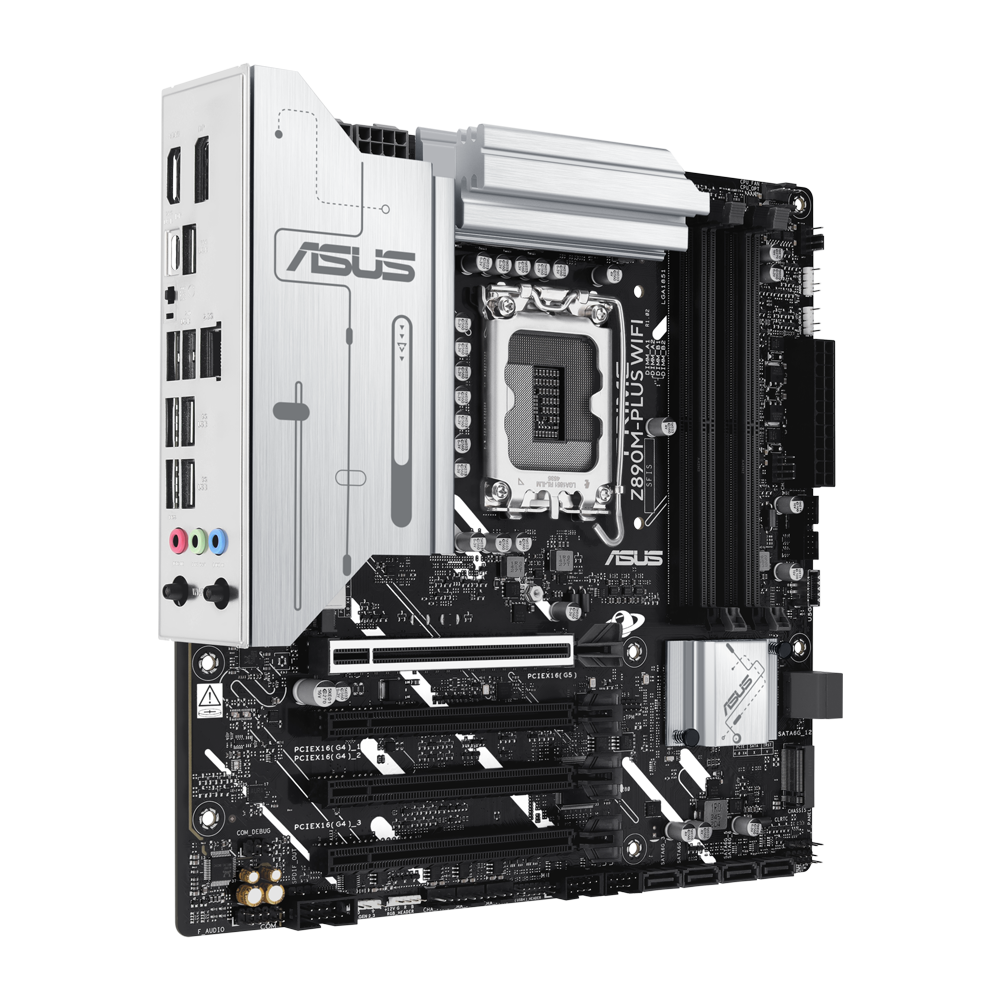

The ASUS PRIME Z890M-PLUS WIFI DDR5 Motherboard, Black is designed to deliver powerful performance and advanced connectivity for modern desktop systems powered by the latest Intel processors. Built on the Intel Z890 chipset, the motherboard supports Intel Core Ultra processors and offers strong power delivery, high-speed memory support, and modern expansion technologies.
The board features a 10+1+2+1 phase power design, with each stage rated for up to 80 amps. This architecture ensures stable and efficient power delivery to high-performance processors, allowing the system to maintain reliable performance under demanding workloads such as gaming, content creation, and intensive computing tasks.
Support for DDR5 memory with ASUS Enhanced Memory Profile III technology allows higher memory frequencies and improved stability. Memory tuning features analyze installed memory modules and optimize performance while maintaining system reliability.
For storage, the motherboard provides three M.2 slots, including one PCIe 5.0 slot capable of extremely high transfer speeds and two PCIe 4.0 slots for additional high-speed storage devices. This configuration allows faster boot times and quicker application loading.
Connectivity includes WiFi 7 wireless networking, which offers improved bandwidth, lower latency, and stable wireless performance across multiple frequency bands. The motherboard also features 2.5 Gigabit Ethernet for high-speed wired networking.
The board includes multiple heatsinks, fan headers, and intelligent cooling control through ASUS Fan Xpert software to maintain stable temperatures. Additional customization features include RGB lighting synchronization and system control through ASUS software utilities.

Key Features
• Supports Intel Core Ultra processors (Series 2)
• Intel Z890 chipset platform
• 10+1+2+1 phase digital power design rated at 80A
• Support for DDR5 memory with memory tuning features
• Three M.2 slots for high-speed storage devices
• PCIe 5.0 slot for modern graphics cards
• WiFi 7 wireless networking support
• 2.5 Gigabit Ethernet networking
• USB Type-C port supporting up to 20Gbps data transfer
• RGB lighting synchronization support

Technical Specifications
General
| Specification | Details |
|---|---|
| Model | PRIME Z890M-PLUS WIFI |
| Motherboard Form Factor | Micro ATX |
| Chipset | Intel Z890 |
| Color | Black |
Processor Support
| Specification | Details |
|---|---|
| CPU Socket | LGA 1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
The motherboard supports modern Intel processors with strong power delivery.
Power Design
| Specification | Details |
|---|---|
| Power Phase Design | 10 + 1 + 2 + 1 phases |
| Power Stage Rating | 80A per stage |
This design ensures stable voltage and efficient processor operation.
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM slots |
| Memory Architecture | Dual Channel |
Supports advanced memory tuning features for improved performance.
Expansion Slots
| Specification | Details |
|---|---|
| PCIe Slot | 1 × PCIe 5.0 x16 |
| PCIe Slot | 2 × PCIe 4.0 x16 (x1 mode) |
| PCIe Slot | 1 × PCIe 4.0 x16 (x4 mode) |
Reinforced slots provide secure support for modern graphics cards.
Storage
| Specification | Details |
|---|---|
| M.2 Slot 1 | PCIe 5.0 x4 |
| M.2 Slot 2 | PCIe 4.0 x4 |
| M.2 Slot 3 | PCIe 4.0 x4 |
High-speed storage interfaces improve system responsiveness and loading times.
Networking
| Specification | Details |
|---|---|
| Wireless | WiFi 7 |
| Wired Network | 2.5 Gigabit Ethernet |
WiFi 7 provides improved bandwidth and reduced latency for modern networks.
USB Connectivity
| Specification | Details |
|---|---|
| USB Type-C | Up to 20Gbps |
| USB Ports | Multiple high-speed USB connections |
The motherboard supports high-speed data transfer for modern devices.
Cooling Features
| Specification | Details |
|---|---|
| VRM Heatsinks | Included |
| Chipset Heatsink | Included |
| Fan Headers | Multiple PWM/DC headers |
ASUS Fan Xpert software allows automatic cooling control and tuning.
User Experience
The ASUS PRIME Z890M-PLUS WIFI DDR5 Motherboard, Black provides a strong foundation for modern gaming systems and high-performance PCs.
With support for high-speed DDR5 memory, PCIe 5.0 expansion, fast storage interfaces, and advanced wireless connectivity, the motherboard delivers reliable performance and flexibility for demanding applications. Intelligent cooling and customization features allow users to build and optimize their systems with ease.

Included Items
• ASUS PRIME Z890M-PLUS WIFI motherboard
• WiFi antenna
• Installation accessories
• User manual and documentation
