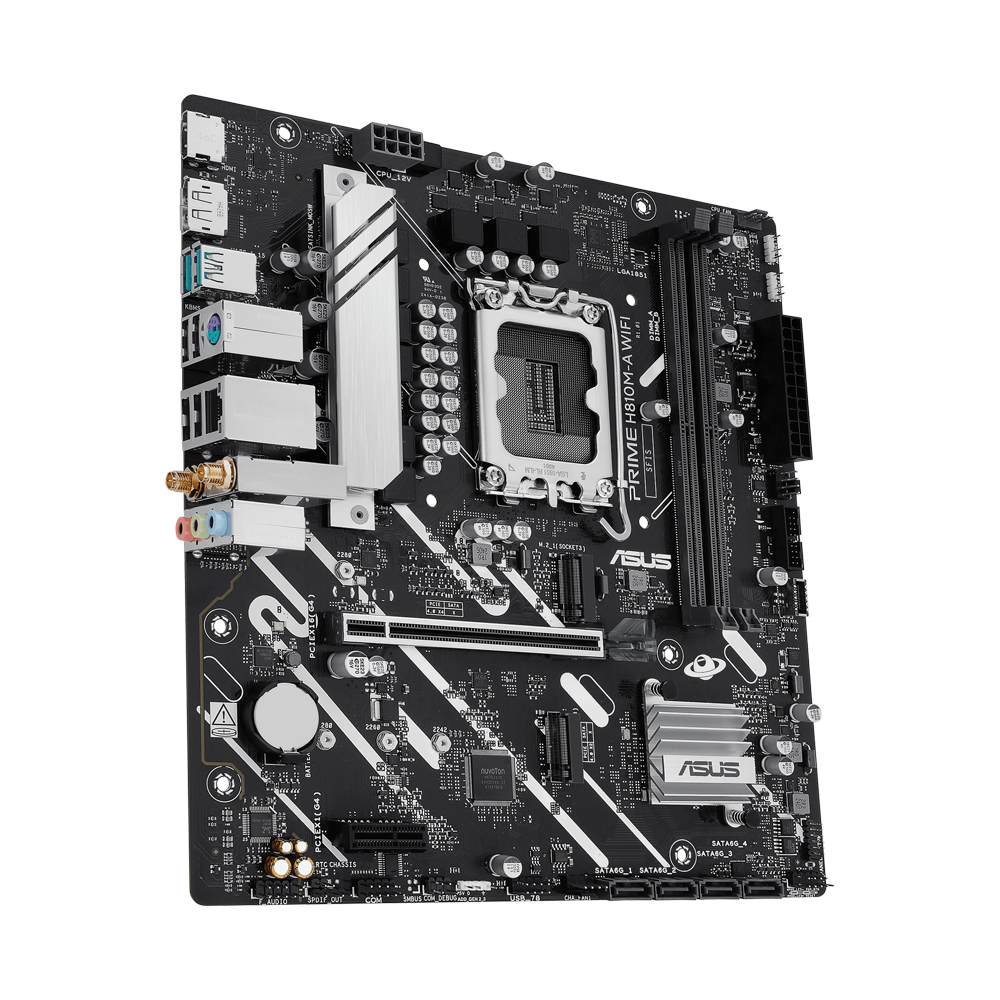

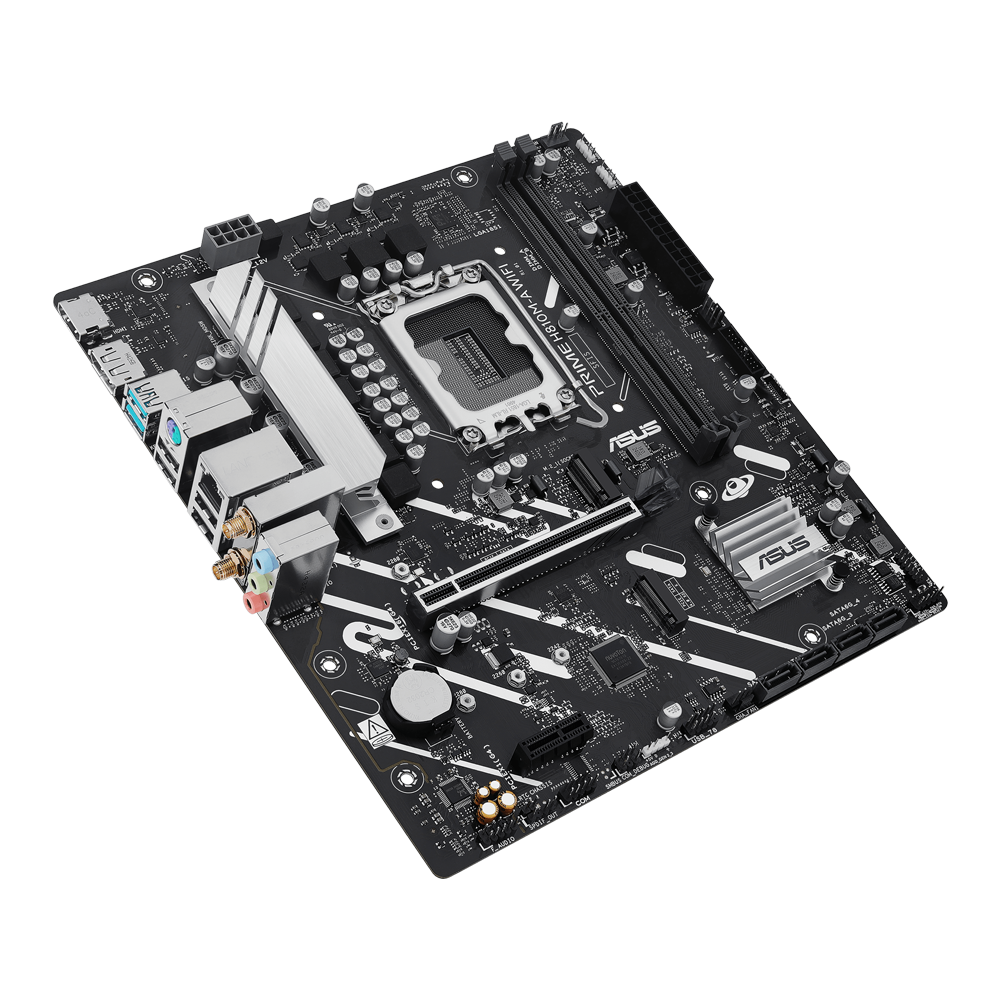

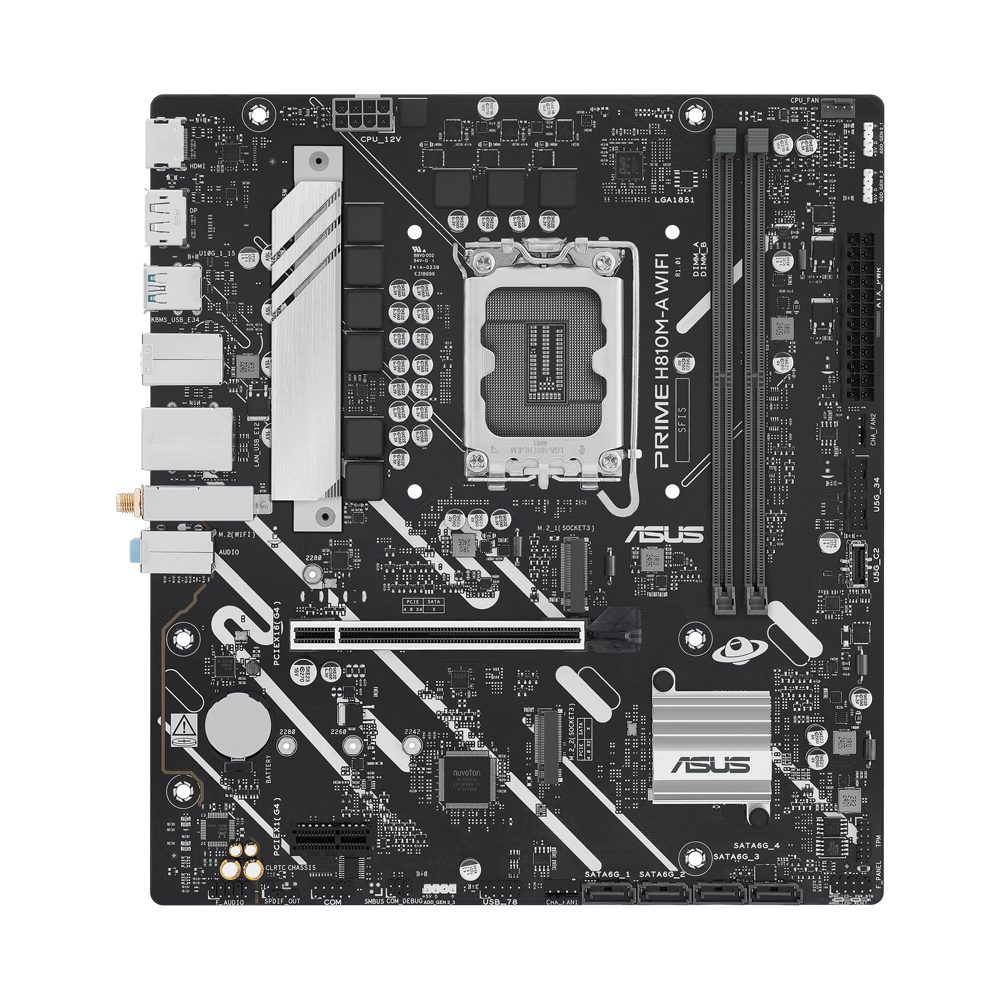

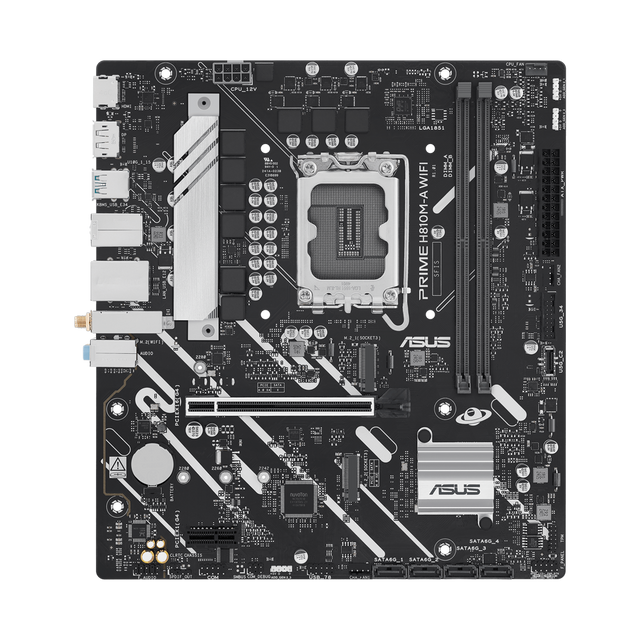

The ASUS PRIME H810M-A WIFI DDR5 Motherboard, Black is designed to deliver reliable performance for modern desktop systems powered by the latest Intel processors. It is engineered to support the newest generation of Intel processors while providing stable power delivery, efficient cooling, and modern connectivity features.
The motherboard features a 6+1+1+1 phase digital power design, which helps ensure consistent and stable power delivery to the processor. This power architecture supports demanding workloads and maintains stable system performance during gaming, content creation, and daily computing.
Support for DDR5 memory allows the system to benefit from faster memory speeds and improved responsiveness. ASUS includes DIMM Fit and DIMM Fit Pro technologies, which analyze memory modules and help optimize memory stability and performance through firmware-level tuning.
For storage performance, the motherboard provides two PCIe 4.0 M.2 slots, enabling high-speed storage devices capable of fast data transfer rates and quicker system boot times.
Networking features include WiFi 6 for improved wireless connectivity and reduced latency, along with Intel 1 Gigabit Ethernet for stable wired network performance.
Cooling is handled through multiple onboard heatsinks and fan headers, along with intelligent fan management through Fan Xpert software, allowing automatic tuning of cooling parameters to maintain stable operating temperatures.
Customization features such as RGB lighting synchronization and intuitive software utilities allow users to personalize system appearance and optimize system performance.

Key Features
• Supports Intel Core Ultra processors (Series 2)
• Intel H810 chipset platform
• 6+1+1+1 phase digital power design
• Support for DDR5 memory modules
• DIMM Fit and DIMM Fit Pro memory optimization
• Two PCIe 4.0 M.2 slots for high-speed storage
• WiFi 6 wireless connectivity
• Intel 1 Gigabit Ethernet networking
• Multiple cooling controls with Fan Xpert
• RGB lighting synchronization support

Technical Specifications
General
| Specification | Details |
|---|---|
| Model | PRIME H810M-A WIFI |
| Motherboard Form Factor | Micro ATX |
| Chipset | Intel H810 |
| Color | Black |
Processor Support
| Specification | Details |
|---|---|
| CPU Socket | LGA 1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
The motherboard is designed to support modern Intel processors with stable power delivery.
Power Design
| Specification | Details |
|---|---|
| Power Phase Design | 6+1+1+1 Digital Power Phases |
This design ensures stable voltage delivery for processor performance and system reliability.
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 DIMM slots |
| Memory Architecture | Dual Channel |
DIMM Fit and DIMM Fit Pro technologies assist in optimizing memory performance.
Expansion Slots
| Specification | Details |
|---|---|
| PCIe Slot | 1 × PCIe 4.0 x16 (SafeSlot Core+) |
| PCIe Slot | 1 × PCIe 4.0 x1 |
The reinforced slot helps support heavier graphics cards.
Storage
| Specification | Details |
|---|---|
| M.2 Slot 1 | PCIe 4.0 x4 (up to 64Gbps) |
| M.2 Slot 2 | PCIe 4.0 x2 |
High-speed M.2 storage improves system boot and application loading times.
Networking
| Specification | Details |
|---|---|
| Wireless | WiFi 6 |
| Wired Network | Intel 1 Gigabit Ethernet |
WiFi 6 provides stable wireless connections with lower latency.
USB Connectivity
| Specification | Details |
|---|---|
| USB Type-A | Up to 10Gbps |
| USB Type-C | Up to 5Gbps |
Multiple USB ports support high-speed peripherals and devices.
Cooling Features
| Specification | Details |
|---|---|
| VRM Heatsink | Included |
| Chipset Heatsink | Included |
| Fan Headers | Multiple PWM/DC headers |
Fan Xpert software allows automatic cooling optimization.
User Experience
The ASUS PRIME H810M-A WIFI DDR5 Motherboard, Black provides a stable and flexible foundation for modern PC builds.
Support for high-speed memory, fast storage interfaces, and modern connectivity ensures reliable performance for gaming, productivity, and daily computing tasks. The integrated cooling controls and customizable software features help users manage system performance while maintaining stable temperatures and efficient operation.

Included Items
• ASUS PRIME H810M-A WIFI motherboard
• WiFi antenna
• Installation accessories
• User manual and documentation
