ASUS  |  SKU: 506346

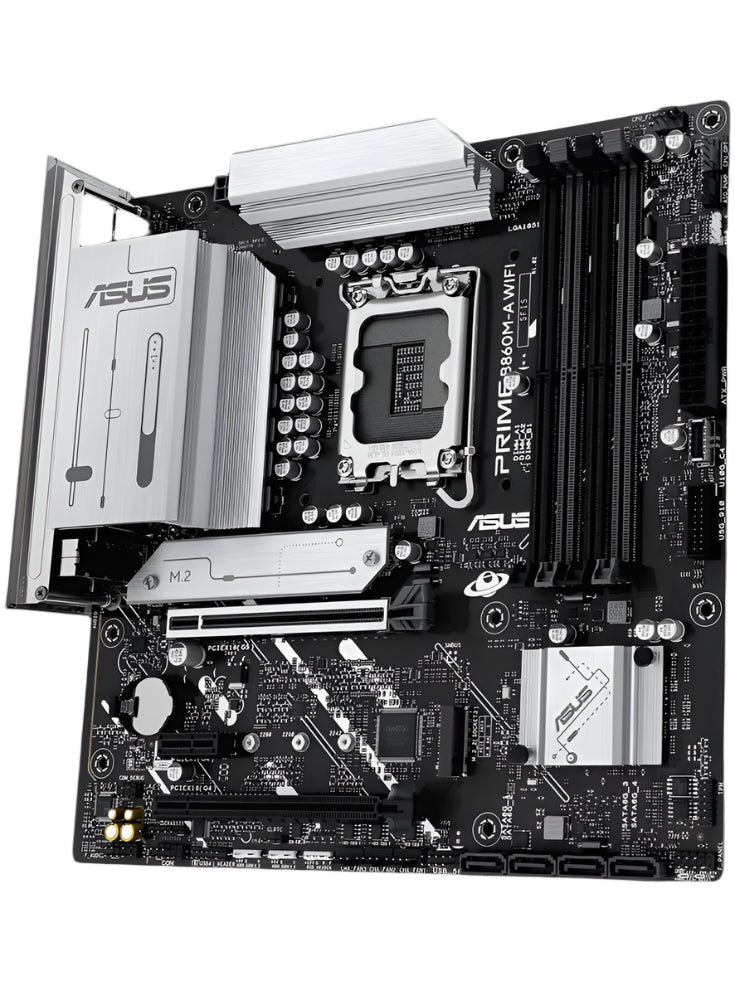

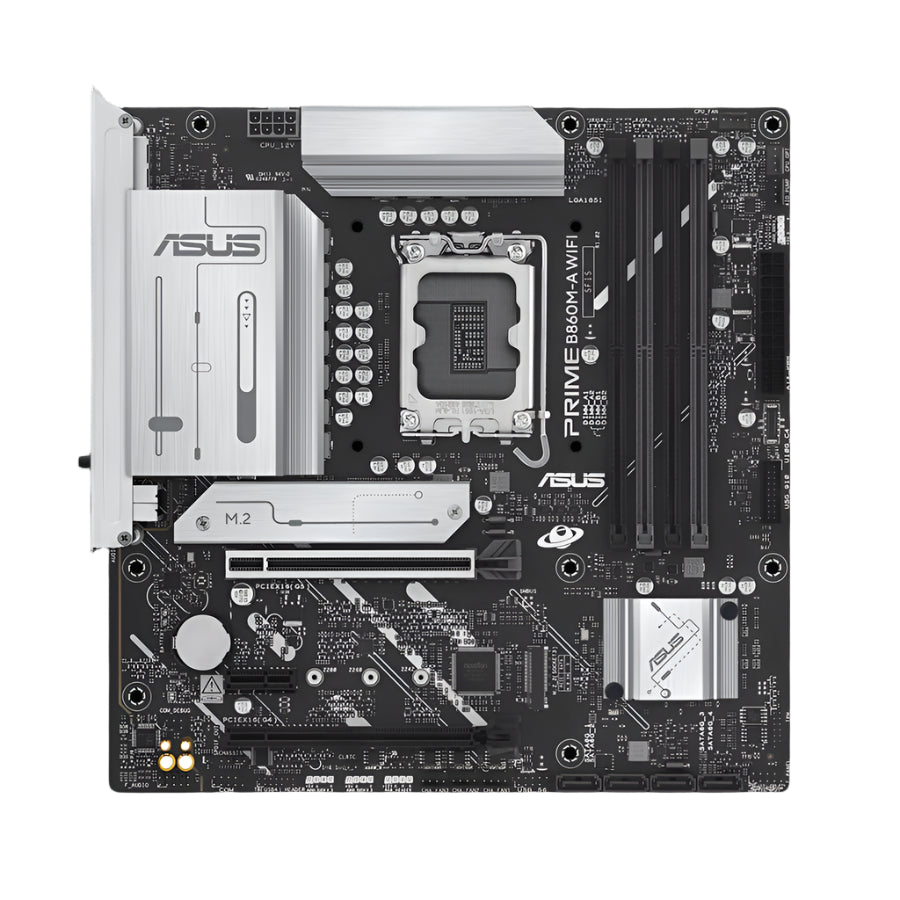

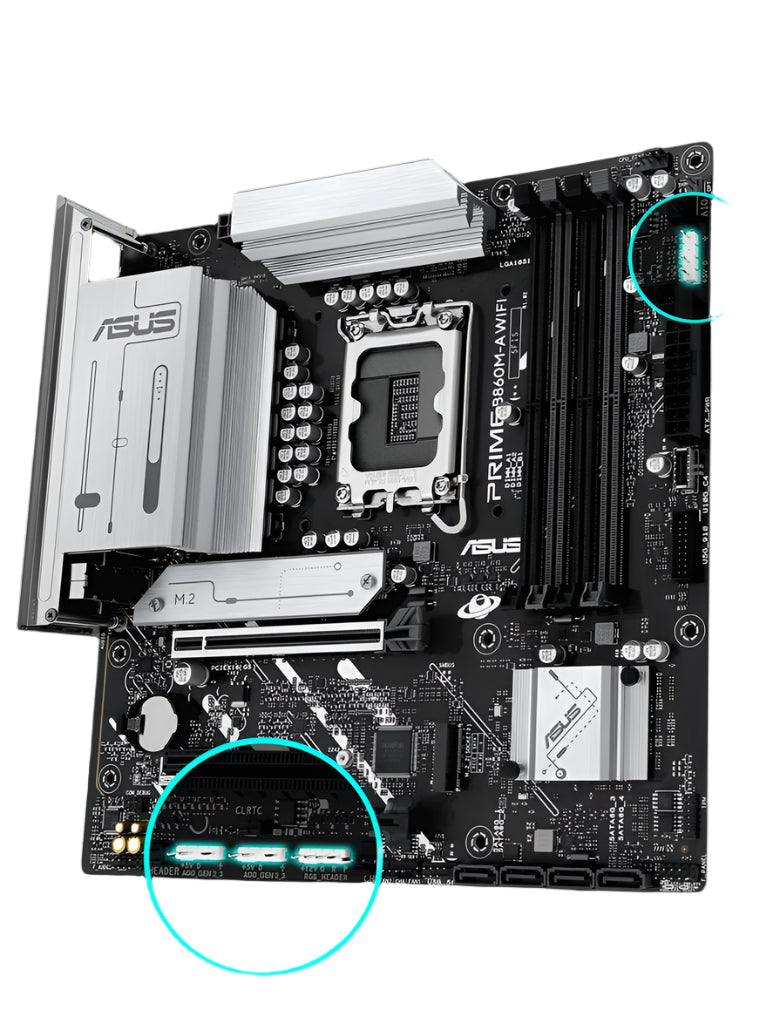

ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard

58.0 KD 63.0 KD

Delivery and Shipping

We offer various shipping methods to suit your needs:

  • Second Day Delivery: Free
  • Same Day Delivery: 1 KD
  • Express Delivery (within 3 hours): 2.9 KD

    Available from 11:00 am to 08:00 pm (Friday starting at 2:00 pm)
  • Digital Cards: Delivered for free directly via SMS

Deliveries after 5 pm will be scheduled for next-day delivery.

Please note: Shipping policies and prices are subject to change.

Care information

At Level Up, we are committed to providing the best experience for gaming enthusiasts. We offer high-quality products that cater to all your gaming needs. To ensure longevity and optimal performance, please follow the care instructions provided with each product. If you have any questions or need assistance, our team is always ready to help!

Payment & Security

Payment methods

  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ASUS PRIME B860M-A WIFI Micro-ATX Motherboard is a compact motherboard designed for Intel® Core™ Ultra Series 2 processors and modern gaming or productivity systems that require fast connectivity, advanced storage support, and efficient cooling in a Micro-ATX form factor.

The motherboard supports PCIe 5.0 graphics and storage, high-speed DDR5 memory up to 8666+ MT/s overclocked, and integrated Wi-Fi 6E networking for reliable performance in gaming, streaming, and workstation environments.

With USB 20Gbps Type-C connectivity, advanced cooling controls, Aura Sync RGB support, and multiple display outputs, the ASUS PRIME B860M-A WIFI is built for flexible modern PC builds and future hardware upgrades.


Technical Specifications

Motherboard Specifications
Brand ASUS
Model PRIME B860M-A WIFI
CPU Support Intel® Core™ Ultra Series 2 Processors
Socket LGA1851

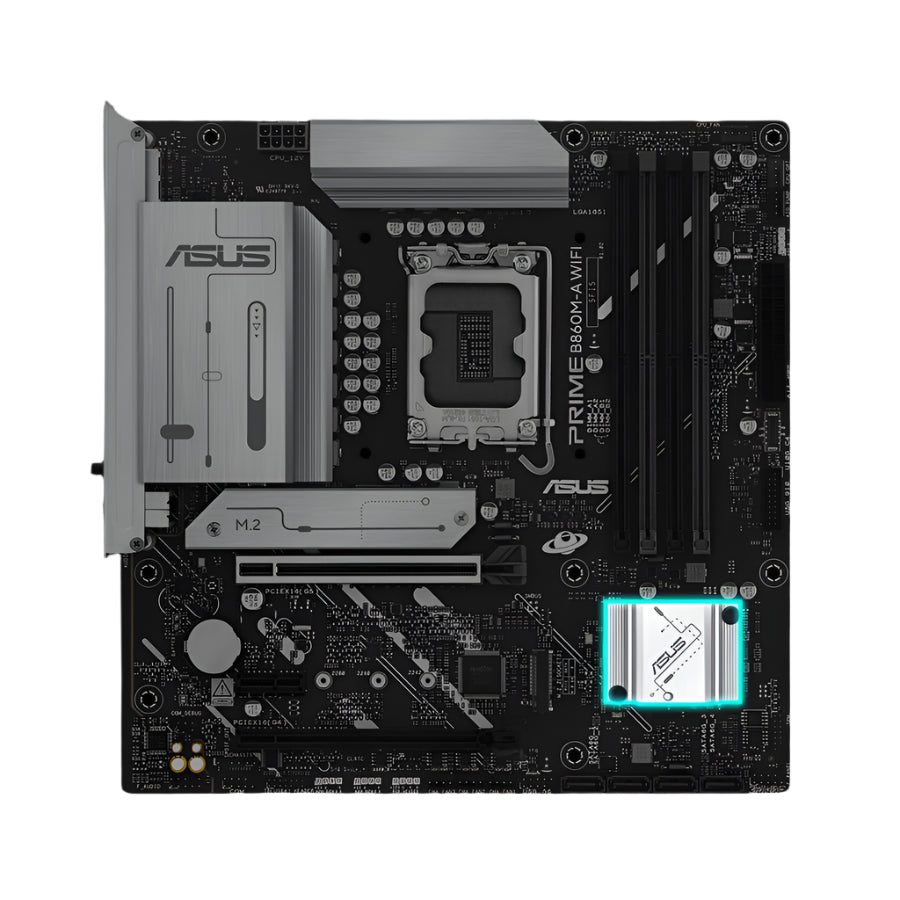

Chipset Intel® B860
Form Factor Micro-ATX (24.4 × 24.4 cm)
Memory Type DDR5

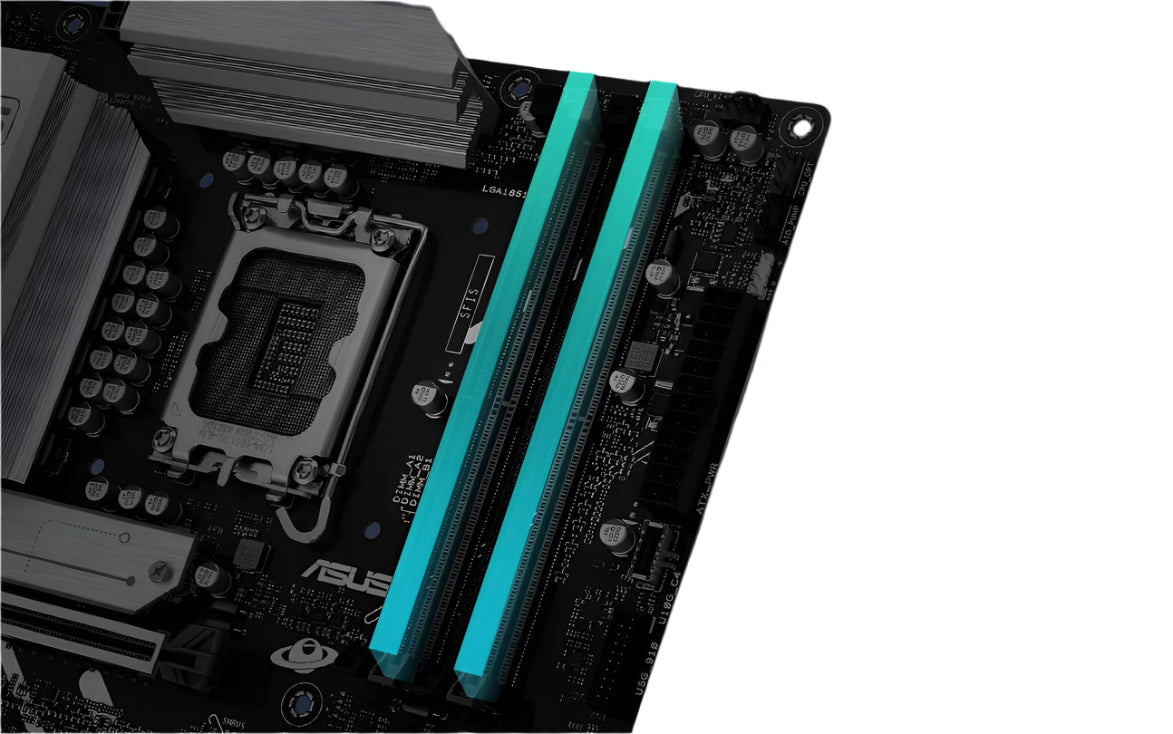

Memory Slots 4 × DDR5 DIMM
Maximum Memory Capacity Up to 256GB
Memory Speed Up to 8666+ MT/s (OC)
Memory Features XMP and AEMPIII Support
Primary PCIe Slot 1 × PCIe 5.0 x16
Additional PCIe Slots 1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x1

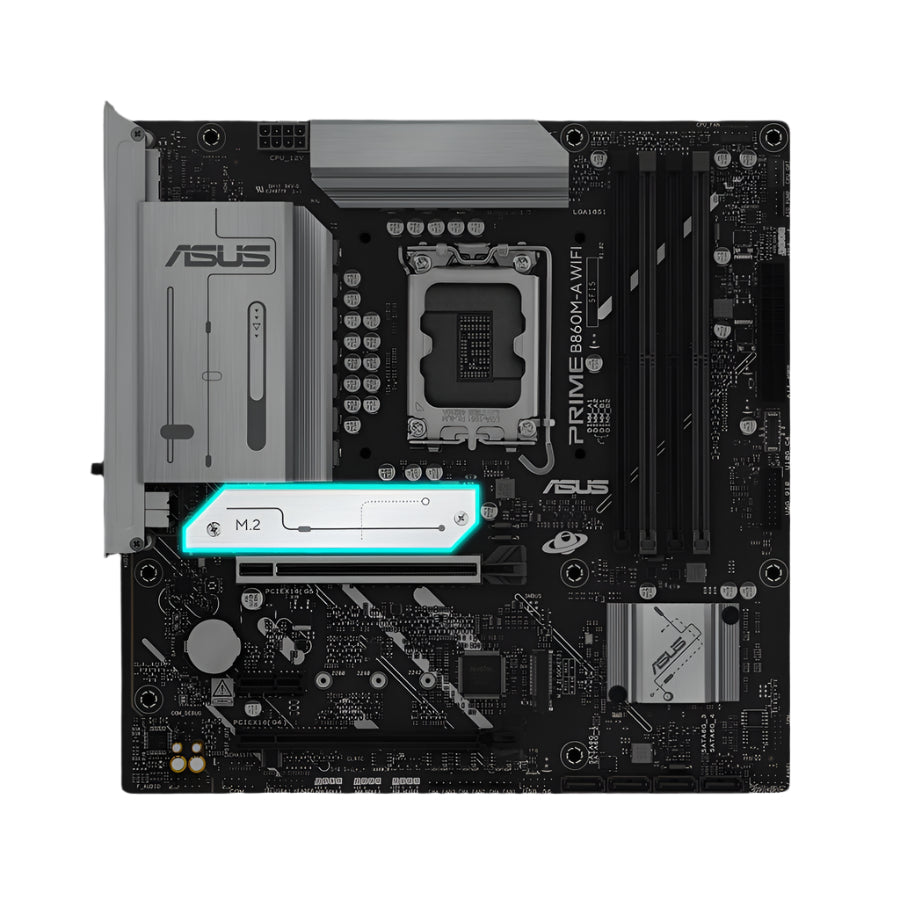

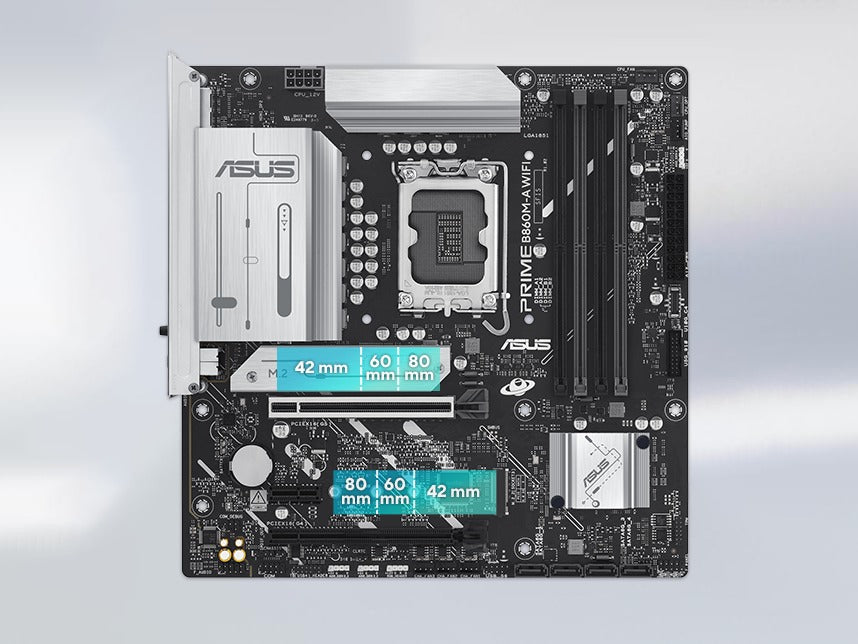

M.2 Storage 2 × M.2 Slots
M.2 Support 1 × PCIe 5.0, 1 × PCIe 4.0
SATA Ports 4 × SATA 6Gb/s
Display Outputs 2 × DisplayPort 1.4, 1 × HDMI 2.1
USB-C Display USB-C DisplayPort Alt Mode
LAN Realtek 2.5Gb Ethernet with LANGuard
Wireless Wi-Fi 6E (2x2)
Bluetooth Bluetooth 5.3

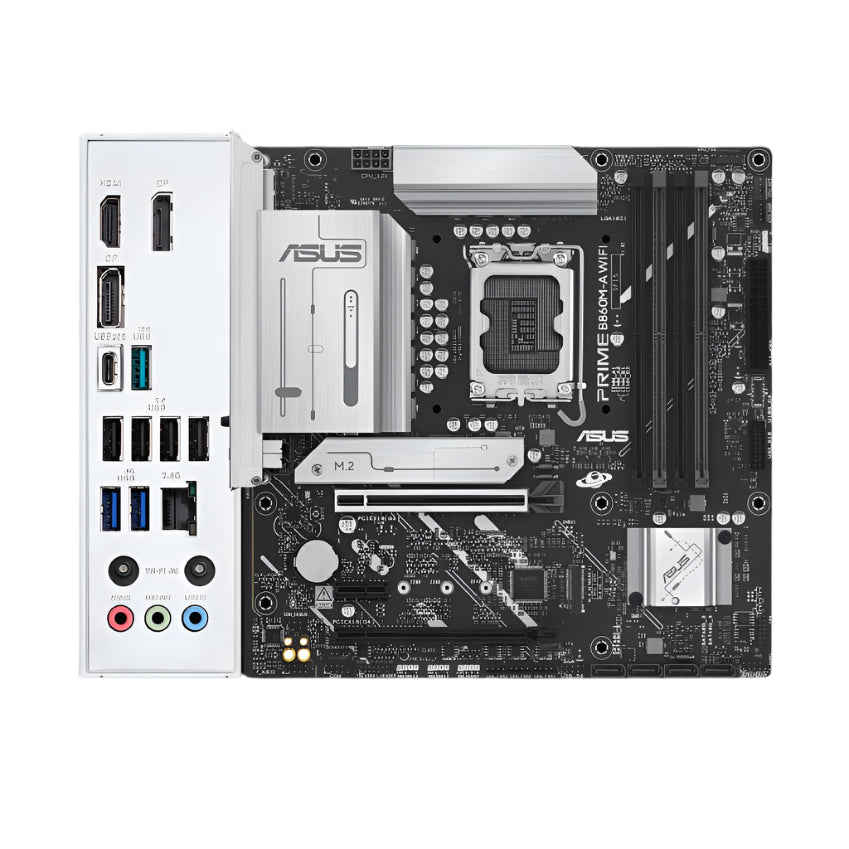

Rear USB Ports USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, USB 2.0
Front USB Ports USB-C 10Gbps, USB 5Gbps, USB 2.0
Audio Realtek 7.1 HD Audio, 24-bit/192kHz, S/PDIF
Cooling Headers CPU, CPU OPT, AIO, 3 × Chassis Fan Headers
Power Connectors 24-pin ATX, 8-pin CPU 12V
RGB Headers 3 × ARGB Gen2, 1 × Aura RGB
Special Features Q-DIMM, Q-LED Core, M.2 Q-Latch, ProCool, SafeSlot, AI Cooling

Key Features

  • LGA1851 socket for Intel® Core™ Ultra processors
  • PCIe 5.0 GPU and SSD support
  • DDR5 memory support up to 8666+ MT/s
  • Integrated Wi-Fi 6E and Bluetooth 5.3
  • USB 20Gbps Type-C connectivity
  • Dual M.2 NVMe storage support
  • Realtek 2.5Gb Ethernet networking
  • Aura Sync RGB lighting support
  • Advanced AI Cooling and BIOS features
  • Compact Micro-ATX gaming motherboard design


User Benefits

  • Supports future GPU and SSD hardware upgrades
  • Provides stable gaming and productivity performance
  • Improves wireless and wired networking speeds
  • Allows faster storage and memory performance
  • Maintains stable temperatures with advanced cooling controls
  • Simplifies installation with ASUS Q-Series DIY features


Compatibility

  • Compatible with Intel® Core™ Ultra Series 2 processors
  • Supports DDR5 desktop memory modules
  • Compatible with PCIe 5.0 graphics cards
  • Supports PCIe 5.0 and PCIe 4.0 NVMe SSDs
  • Fits Micro-ATX compatible PC cases
  • Compatible with Windows 11 operating systems

Included Items

  • ASUS PRIME B860M-A WIFI Motherboard
  • Wi-Fi Antenna
  • SATA Cables
  • Installation Accessories
  • User Manual and Documentation
